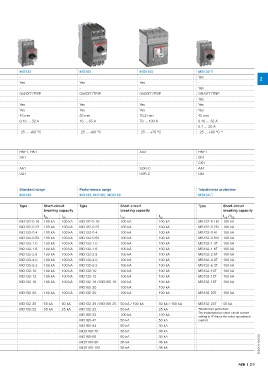

Page 17 - Motor_protection_and_control_Manual_motor_starters_ contactors

Type MS116 MS132 MS165 MS5100 MO132 MO165 MO5100 MS132-T
Thermal and electromagnetic protection Yes Yes Yes Yes - - - Yes 2
Electromagnetic protection - - - - Yes Yes Yes -
Phase loss sensitivity Yes Yes Yes Yes - - - Yes
Switch position ON/OFF ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP
Magnetic trip indication - Yes Yes Yes - - - Yes
Lockable handle without accessories - Yes Yes Yes Yes Yes Yes Yes
Disconnecting feature Yes Yes Yes Yes Yes Yes Yes Yes
Width 45 mm 45 mm 55 mm 90 mm 45 mm 55 mm 76.2 mm 45 mm
Rated operational current I e 0.16 ... 32 A 0.16 ... 32 A 16 ... 65 A 100 A 0.16 ... 32 A 16 ... 65 A 70 ... 100 A 0.16 ... 32 A
Setting range 0.1 ... 32 A 0.1 ... 32 A 10 ... 65 A 40 ... 100 A 2) - - - 0.1 ... 25 A
Ambient air temperature -25 ... +55 °C 1) -25 ... +60 °C 1) -20 ... +60 °C 1) -25 ... +70 °C -25 ... +60 °C -25 ... +60 °C -25 ... +70 °C -25 ... +60 °C 1)
1) Compensated
2) For motor loads only up to 80 A
Accessories
Auxiliary contact HKF1, HK1 AUX HKF1, HK1 AUX HKF1
Signalling for tripped alarm SK1 AUX SA SK1 - SK1
contact for short-circuit alarm - CK1 - - - CK1
Shunt trip AA1 SOR-C AA1 SOR-C AA1
Undervoltage release UA1 UVR-C UA1 UVR-C UA1
Table for short-circuit ratings for 400/415 V
Standard range Performance range Standard range Performance range Transformer protection
MS116 MS132, MS165, MS5100 MO132 MO132, MO165, MO5100 MS132-T
Selection parameters
Rated operational Setting range for Type Short-circuit Type Short-circuit Type Short-circuit Type Short-circuit Type Short-circuit
power thermal release breaking capacity breaking capacity breaking capacity breaking capacity breaking capacity
I CU I CS I CU I CS I CU I CS I CU I CS I / I CS
CU
0.03 kW 1) 0.1 … 0.16 A MS116-0.16 50 kA 50 kA MS132-0.16 100 kA 100 kA MO132-0.16 100 kA 100 kA MO132-0.16 100 kA 100 kA MS132-0.16T 100 kA
0.06 kW 0.16 … 0.25 A MS116-0.25 50 kA 50 kA MS132-0.25 100 kA 100 kA MO132-0.25 100 kA 100 kA MO132-0.25 100 kA 100 kA MS132-0.25T 100 kA
0.09 kW 0.25 … 0.4 A MS116-0.4 50 kA 50 kA MS132-0.4 100 kA 100 kA MO132-0.4 100 kA 100 kA MO132-0.4 100 kA 100 kA MS132-0.4T 100 kA
0.18 kW 0.4 … 0.63 A MS116-0.63 50 kA 50 kA MS132-0.63 100 kA 100 kA MO132-0.63 100 kA 100 kA MO132-0.63 100 kA 100 kA MS132-0.63T 100 kA
0.25 kW 0.63 … 1.0 A MS116-1.0 50 kA 50 kA MS132-1.0 100 kA 100 kA MO132-1.0 100 kA 100 kA MO132-1.0 100 kA 100 kA MS132-1.0T 100 kA
0.55 kW 1.0…1.6 A MS116-1.6 50 kA 50 kA MS132-1.6 100 kA 100 kA MO132-1.6 100 kA 100 kA MO132-1.6 100 kA 100 kA MS132-1.6T 100 kA
0.75 kW 1.6…2.5 A MS116-2.5 50 kA 50 kA MS132-2.5 100 kA 100 kA MO132-2.5 100 kA 100 kA MO132-2.5 100 kA 100 kA MS132-2.5T 100 kA
1.5 kW 2.5…4.0 A MS116-4.0 50 kA 50 kA MS132-4.0 100 kA 100 kA MO132-4.0 100 kA 100 kA MO132-4.0 100 kA 100 kA MS132-4.0T 100 kA
2.2 kW 4.0…6.3 A MS116-6.3 50 kA 50 kA MS132-6.3 100 kA 100 kA MO132-6.3 100 kA 100 kA MO132-6.3 100 kA 100 kA MS132-6.3T 100 kA
4.0 kW 6.3…10 A MS116-10 50 kA 50 kA MS132-10 100 kA 100 kA MO132-10 100 kA 100 kA MO132-10 100 kA 100 kA MS132-10T 100 kA
5.5 kW 8…12 A MS116-12 25 kA 25 kA MS132-12 100 kA 100 kA MO132-12 100 kA 100 kA MO132-12 100 kA 100 kA MS132-12T 100 kA
7.5 kW 10…16 A MS116-16 16 kA 16 kA MS132-16 / MS165-16 100 kA 100 kA MO132-16 100 kA 100 kA MO132-16 / MO165-16 100 kA 100 kA MS132-16T 100 kA
7.5 kW 14 ... 20 A MS165-20 100 kA 100 kA MO165-20 100 kA 100 kA
7.5 kW 16…20 A MS116-20 15 kA 10 kA MS132-20 100 kA 100 kA MO132-20 100 kA 100 kA MO132-20 100 kA 100 kA MS132-20T 100 kA
11 kW 18 … 25 A MS165-25 100 kA 100 kA
11 kW 20…25 A MS116-25 15 kA 10 kA MS132-25 50 kA 50 kA MO132-25 50 kA 50 kA MO132-25 / MO165-25 50 kA / 100 kA 50 kA / 100 kA MS132-25T 50 kA
15 kW 25…32 A MS116-32 10 kA 10 kA MS132-32 50 kA 25 kA MO132-32 50 kA 25 kA MO132-32 50 kA 25 kA Transformer protection:
The instantaneous short-circuit current
15 kW 23 ... 32 A MS165-32 100 kA 100 kA MO165-32 100 kA 100 kA
setting is 20 times the rated operational
22 kW 30 ... 42 A MS165-42 50 kA 50 kA MO165-42 50 kA 50 kA current.
22 kW 40 ... 54 A MS165-54 50 kA 30 kA MO165-54 50 kA 30 kA
25 kW - MO5100-70 36 kA 36 kA
30 kW 52 ... 65 A MS165-65 50 kA 30 kA MO165-65 50 kA 30 kA
37 kW 40 ... 100 A MS5100-100 70 kA 70 kA MO5100-80 36 kA 36 kA 2CDC131112C0201
45 kW 40 ... 100 A MS5100-100 70 kA 70 kA MO5100-100 36 kA 36 kA
1) 690 V

ABB | 2/9
