P. 18

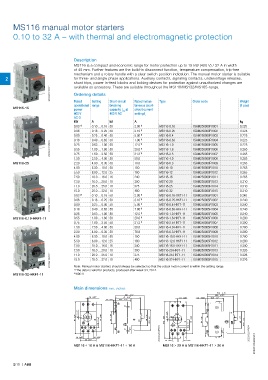

MS116 manual motor starters

       0.10 to 32 A – with thermal and electromagnetic protection





                                  Description
                                  MS116 is a compact and economic range for motor protection up to 15 kW (400 V) / 32 A in width
                                  of 45 mm. Further features are the build-in disconnect function, temperature compensation, trip-free
                                  mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable
    2                             for three- and single phase applications. Auxiliary contacts, signaling contacts, undervoltage releases,
                                  shunt trips, power in-feed blocks and locking devices for protection against unauthorized changes are
                                  available as accessory. These are suitable throughout the MS116/MS132/MS165-range.
                       2CDC241010F0011  Ordering details

                                  Rated
                                          Setting
                                                  breaking
                                  operational  range  Short-circuit   Rated instan-  Type   Order code      Weight
                                                                                                            (1 pce)
                                                             taneous short-
       MS116-16
                                  power           capacity I  at   circuit current
                                                       CS
                                  400 V           400 V AC   setting l i
                                  AC-3
                                  kW      A       kA         A                                              kg
                                  0.03   2)  0.10 ... 0.16 50  2.00  1)  MS116-0.16    1SAM250000R1001      0.225
                                  0.06    0.16 ... 0.25  50  3.10  1)   MS116-0.25     1SAM250000R1002      0.225
                                  0.09    0.25 ... 0.40 50   5.00  1)   MS116-0.4      1SAM250000R1003      0.225
                                  0.18    0.40 ... 0.63  50  7.90  1)  1)  MS116-0.63  1SAM250000R1004      0.225
                       2CDC241001F0011  0.25  0.63 ... 1.00  50  12.5  1)  1)  MS116-1.0  1SAM250000R1005   0.225
                                          1.00 ... 1.60  50
                                                                                                            0.265
                                                                        MS116-1.6
                                                                                       1SAM250000R1006
                                  0.55
                                                             20.0
                                  0.75
                                                                        MS116-4.0
                                          2.50 ... 4.00  50
                                                                                                            0.265
                                  1.50    1.60 ... 2.50  50  31.3       MS116-2.5      1SAM250000R1007      0.265
                                                             50.0
                                                                                       1SAM250000R1008
       MS116-25                   2.20    4.00 ... 6.30  50  78.8       MS116-6.3      1SAM250000R1009      0.265
                                  4.00    6.30 ... 10.0  50  150        MS116-10       1SAM250000R1010      0.265
                                  5.50    8.00 ... 12.0  25  180        MS116-12       1SAM250000R1012      0.265
                                  7.50    10.0 ... 16.0  16  240        MS116-16       1SAM250000R1011      0.265
                                  7.50    16.0 ... 20.0 10   300        MS116-20       1SAM250000R1013      0.310
                                  11.0    20.0 ... 25.0 10   375        MS116-25       1SAM250000R1014      0.310
                                  15.0    25.0 ... 32.0 10   480        MS116-32       1SAM250000R1015      0.310
                                  0.03   2)  0.10 ... 0.16 50  2.00  1)  1)  MS116-0.16-HKF1-11  1SAM250005R1001  0.240
                       2CDC241013F0011  0.06  0.16 ... 0.25  50  3.10  1)  1)  MS116-0.25-HKF1-11  1SAM250005R1002  0.240
                                  0.09
                                                                        MS116-0.4-HKF1-11
                                                             5.00
                                                                                                            0.240
                                          0.25 ... 0.40 50
                                                                                       1SAM250005R1003
                                  0.18
                                                                                                            0.240
                                                                                       1SAM250005R1005
                                          0.63 ... 1.00  50
                                                                        MS116-1.0-HKF1-11
                                  0.25    0.40 ... 0.63  50  7.90  1)   MS116-0.63-HKF1-11  1SAM250005R1004  0.240
                                                             12.5
       MS116-0.16-HKF1-11         0.55    1.00 ... 1.60  50  20.0  1)   MS116-1.6-HKF1-11  1SAM250005R1006  0.280
                                  0.75    1.60 ... 2.50  50  31.3  1)   MS116-2.5-HKF1-11  1SAM250005R1007  0.280
                                  1.50    2.50 ... 4.00  50  50.0       MS116-4.0-HKF1-11  1SAM250005R1008  0.280
                                  2.20    4.00 ... 6.30  50  78.8       MS116-6.3-HKF1-11  1SAM250005R1009  0.280
                                  4.00    6.30 ... 10.0  50  150        MS116-10.0-HKF1-11  1SAM250005R1010  0.280
                                  5.50    8.00 ... 12.0  25  180        MS116-12.0-HKF1-11  1SAM250005R1012  0.280
                                  7.50    10.0 ... 16.0  16  240        MS116-16.0-HKF1-11  1SAM250005R1011  0.280
                                  7.50    16.0 ... 20.0 10   300        MS116-20-HKF1-11  1SAM250005R1013   0.326
                       2CDC241012F0011  15.0  25.0 ... 32.0 10  480     MS116-32-HKF1-11  1SAM250005R1015   0.326
                                                                                                            0.326
                                                             375
                                                                        MS116-25-HKF1-11
                                  11.0
                                          20.0 ... 25.0 10
                                                                                       1SAM250005R1014
                                    The data is valid for products, produced after week 34, 2014.
                                  1) Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.
       MS116-32-HKF1-11           2)  690 V
                                  Main dimensions mm, inches
                                                                                                 79.9    3.15"
                                                         80.1   3.15"                            69.8    2.75"
                                         1.5   0.06"    70   2.76"               1.5    0.06"  5.5    0.22"  43.3    1.7"
                                                5.5   0.22"  43.5   1.71"
                                    0.07"                                  0.07"
                                  3.54"  1.7   2.95"  1.38"       1.77"  2.3"  3.85"  1.7   2.95"  1.38"    1.77"
                                  90         1.1"  75   35        45   57.8   97.8    75    35              45   2.3"
                                             27.5                                    1.1"  27.5              57.8
                                                                        2CDC242002F0010                         2CDC242001F0011
                                   14   0.55"  14   0.55"
                                       45   1.77"                         14    0.55"  14    0.55"
                                                                               45    1.77"                        2CDC131062C0201
                                  MS116 ≤ 16 A & MS116-HKF1-11 ≤ 16 A    MS116 ≥ 20 A & MS116-HKF1-11 ≥ 20 A
