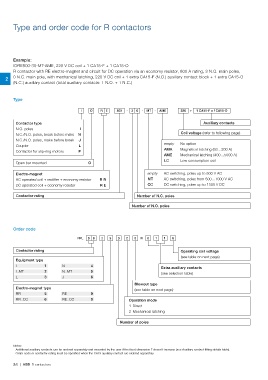

Type and order code for R contactors

Example:

IORE800-30-MT-AME, 220 V DC coil + 1 CA15-F + 1 CA15-O

R contactor with RE electro-magnet and circuit for DC operation via an economy resistor, 800 A rating, 3 N.O. main poles,

2 0 N.C. main pole, with mechanical latching, 220 V DC coil + 1 extra CA15-F (N.O.) auxiliary contact block + 1 extra CA15-O
(N.C.) auxiliary contact (total auxiliary contacts: 1 N.O. + 1 N.C.)

Type

I O R E 800 - 3 0 - MT - AME 220 + 1 CA15-F + 1CA15-O

Contactor type Auxiliary contacts
Coil voltage (refer to following page)
N.O. poles I

N.C./N.O. poles, break before make N

N.C./N.O. poles, make before break J empty No option
AMA Magnetical latching (63…200 A)
Coupler L AME Mechanical latching (400…5000 A)
LC Low consumption coil
Contactor for slip-ring motors F

Open bar mounted O

Electro-magnet RR empty AC switching, poles up to 500 V AC
AC operated coil + rectifier + economy resistor RE MT AC switching, poles from 500…1000 V AC
DC operated coil + economy resistor CC DC switching, poles up to 1500 V DC

Contactor rating Number of N.C. poles
Number of N.O. poles

Order code

FPL 8 6 2 9 3 2 5 R 0 1 1 6

Contactor rating Operating coil voltage
(see table on next page)
Equipment type
Extra auxiliary contacts
I 1 N 4 (see selection table)
N..MT 5
I..MT 2 J 6 Blowout type
(see table on next page)
L 3 RE 9
RE..CC 0 Operation mode
Electro-magnet type 1 Direct
2 Mechanical latching
RR 5
Number of poles
RR..CC 6

Notes:
– Additional auxiliary contacts can be ordered separately and mounted by the user if the fixed dimension F doesn't increase (see Auxiliary contact fitting details table).
– Order code or contactor rating must be specified when the CA15 auxiliary contact are ordered separately.

2/6 | ABB R contactors
