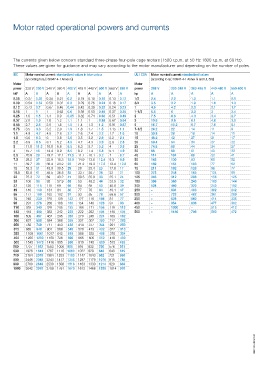

Motor rated operational powers and currents
The currents given below concern standard three-phase four-pole cage motors (1500 r.p.m. at 50 Hz 1800 r.p.m. at 60 Hz).
These values are given for guidance and may vary according to the motor manufacturer and depending on the number of poles.
IEC Motor nominal current: standardized values in blue colour UL / CSA Motor nominal current: standardized values
(according to IEC 60947-4-1 Annex G) (according to IEC 60947-4-1 Annex G and UL 508)
Motor Motor
power 220 V 230 V 240 V 380 V 400 V 415 V 440 V 500 V 660 V 690 V power 208 V 220-240 V 380-415 V 440-480 V 550-600 V
kW AAAAAAAAAA hp A A A A A
0.06 0.37 0.35 0.34 0.21 0.2 0.19 0.18 0.16 0.13 0.12 1/2 2.4 2.2 1.3 1.1 0.9
0.09 0.54 0.52 0.50 0.32 0.3 0.29 0.26 0.24 0.18 0.17 3/4 3.5 3.2 1.8 1.6 1.3
0.12 0.73 0.7 0.67 0.46 0.44 0.42 0.39 0.32 0.24 0.23 1 4.6 4.2 2.3 2.1 1.7
0.18 1 1 1 0.63 0.6 0.58 0.53 0.48 0.37 0.35 1-1/2 6.6 6 3.3 3 2.4
0.25 1.6 1.5 1.4 0.9 0.85 0.82 0.74 0.68 0.51 0.49 2 7.5 6.8 4.3 3.4 2.7
0.37 2.0 1.9 1.8 1.2 1.1 1.1 1 0.88 0.67 0.64 3 10.6 9.6 6.1 4.8 3.9
0.55 2.7 2.6 2.5 1.6 1.5 1.4 1.3 1.2 0.91 0.87 5 16.7 15.2 9.7 7.6 6.1
0.75 3.5 3.3 3.2 2.0 1.9 1.8 1.7 1.5 1.15 1.1 7-1/2 24.2 22 14 11 9
1.1 4.9 4.7 4.5 2.8 2.7 2.6 2.4 2.2 1.7 1.6 10 30.8 28 18 14 11
1.5 6.6 6.3 6 3.8 3.6 3.5 3.2 2.9 2.2 2.1 15 46.2 42 27 21 17
2.2 8.9 8.5 8.1 5.2 4.9 4.7 4.3 3.9 2.9 2.8 20 59.4 54 34 27 22
3 11.8 11.3 10.8 6.8 6.5 6.3 5.7 5.2 4 3.8 25 74.8 68 44 34 27
4 15.7 15 14.4 8.9 8.5 8.2 7.4 6.8 5.1 4.9 30 88 80 51 40 32
5.5 20.9 20 19.2 12.1 11.5 11.1 10.1 9.2 7 6.7 40 114 104 66 52 41
7.5 28.2 27 25.9 16.3 15.5 14.9 13.6 12.4 9.3 8.9 50 143 130 83 65 52
11 39.7 38 36.4 23.2 22 21.2 19.3 17.6 13.4 12.8 60 169 154 103 77 62
15 53.3 51 48.9 30.5 29 28 25.4 23 17.8 17 75 211 192 128 96 77
18.5 63.8 61 58.5 36.8 35 33.7 30.7 28 22 21 100 273 248 165 124 99
22 75.3 72 69 43.2 41 39.5 35.9 33 25.1 24 125 343 312 208 156 125
30 100 96 92 57.9 55 53 48.2 44 33.5 32 150 396 360 240 180 144
37 120 115 110 69 66 64 58 53 40.8 39 200 528 480 320 240 192
45 146 140 134 84 80 77 70 64 49.1 47 250 – 604 403 302 242
55 177 169 162 102 97 93 85 78 59.6 57 300 – 722 482 361 289
75 240 230 220 139 132 127 116 106 81 77 350 – 828 560 414 336
90 291 278 266 168 160 154 140 128 97 93 400 – 954 636 477 382
110 355 340 326 205 195 188 171 156 118 113 450 – 1030 – 515 412
132 418 400 383 242 230 222 202 184 140 134 500 – 1180 786 590 472
160 509 487 467 295 280 270 245 224 169 162
200 637 609 584 368 350 337 307 280 212 203
250 782 748 717 453 430 414 377 344 261 250
315 983 940 901 568 540 520 473 432 327 313
355 1109 1061 1017 642 610 588 535 488 370 354
400 1255 1200 1150 726 690 665 605 552 418 400
500 1545 1478 1416 895 850 819 745 680 515 493
560 1727 1652 1583 1000 950 916 832 760 576 551
630 1928 1844 1767 1116 1060 1022 929 848 643 615
710 2164 2070 1984 1253 1190 1147 1043 952 721 690
800 2446 2340 2243 1417 1346 1297 1179 1076 815 780
900 2760 2640 2530 1598 1518 1463 1330 1214 920 880
1000 3042 2910 2789 1761 1673 1613 1466 1339 1014 970
