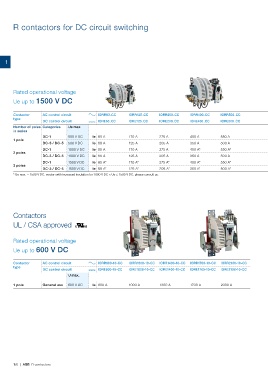

R contactors for DC circuit switching

1

Rated operational voltage

Ue up to 1500 V DC

Contactor AC control circuit IORR63..CC IORR125..CC IORR200..CC IORR400..CC IORR500..CC
type DC control circuit IORE63..CC IORE125..CC IORE200..CC IORE400..CC IORE500..CC

Number of poles Categories Ue max. Ie 85 A 400 A 550 A
in series Ie 68 A 350 A 500 A
400 A* 550 A*
1 pole DC-1 500 V DC 170 A 275 A 350 A 500 A
125 A 205 A 400 A* 550 A*
DC-3 / DC-5 500 V DC 350 A* 500 A*

2 poles DC-1 1000 V DC Ie 85 A 170 A 275 A
Ie 68 A 125 A 205 A
DC-3 / DC-5 1000 V DC

3 poles DC-1 1500 V DC Ie 85 A* 170 A* 275 A*
Ie 68 A* 125 A* 205 A*
DC-3 / DC-5 1500 V DC

* Ue max. = 1500 V DC, version with increased insulation for 1000 V DC < Ue ≤ 1500 V DC, please consult us.

Contactors
UL / CSA approved

Rated operational voltage

Ue up to 600 V DC

Contactor AC control circuit IORR800-10-CC IORR1000-10-CC IORR1400-10-CC IORR1700-10-CC IORR2100-10-CC
type DC control circuit IORE800-10-CC IORE1000-10-CC IORE1400-10-CC IORE1700-10-CC IORE2100-10-CC

1 pole U max. Ie 800 A 1000 A 1300 A 1700 A 2000 A

General use 600 V DC

1/6 | ABB R contactors
