8                MAIN CATALOG PLC AUTOMATION



          —

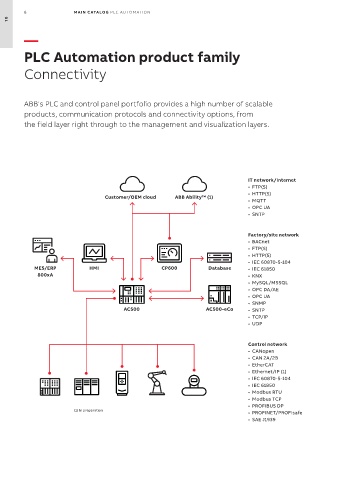

          PLC Automation product family


          Network architecture









                           Communication with AC500 – the perfect      fibers. PROFIBUS DP allows for the connection
  01                       solution                                    of up to 126 devices (master/slave) to one bus
                           Flexibility, real-time capability and maximum   segment thus enabling simple and reliable com-
                           data transfer speed are just some of the commu-  munication solutions.
                           nication demands automation systems must
                           meet. With the AC500, ABB has developed a com-  PROFINET
                           munication platform offering customer-oriented   PROFINET I/O meets the stringent requirements
                           solutions for the most diverse communication   for real time Ethernet protocols in the world of
                           tasks. Simple network configuration and diagnos-  automation. Very fast data transfer, integrated
                           tics options using Automation Builder enable   and standardized network structures from con-
                           ease of planning, implementation and commis-  troller to field and flexible network management
                           sioning thus saving engineering time and project   support users in the implementation of their
                           costs. Among others, ABB's AC500 supports the   automation solutions.
                           following communication protocols:
                                                                       CANopen
                           PROFIBUS DP                                 With up to 127 participants and transmission
                           PROFIBUS DP delivers flexible configuration by   speeds of 10 kbit/s up to 1 Mbit/s depending on
                           means of a mono- and multi-master system    bus length, CANopen offers high-speed data
                           structure and data transfer rates of up to    transfer and high immunity in master/slave net-
                           12 Mbit/s with twisted pair cables and/or optical   work topologies.



                                                         Automation                                         Cloud
                                                         Builder



                                                                                                           Industrial Ethernet             (ring redundancy as an option)


         CP600 / CP600-eCo                                 Remote                    AC500 PLC
                                                           system




            AC500-eCo

                                                                                                       Machine push
                                                                   Modbus
                                                                                                       buttons



                Flow
                meter                                                              UMC
                                            ACS880



                      Temp.
                      sensor
                                                                                 Field
                                                                                 devices               Softstarter
                                                 Motor     Actuator
   5   6   7   8   9   10   11   12   13   14   15
