AC500-eCo  AC500      AC500 V3   AC500-XC   AC500-S (2)  AC500-S-XC (2)
         System Configuration and Application programming                                                           1

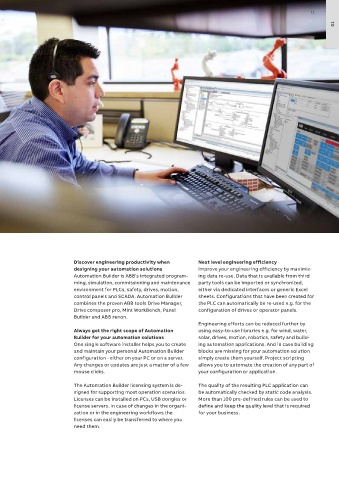

         Automation Builder (common programming tool)  n  n          n          n          n          n
         Application Features
         Extended temperature range                                                                   n
         Functional safety                                                                 n          n
         Support of simple motion with FM562 module (1)  n  n        n (3)(5)   n          n          n
         Support of coordinated motion (1)               n           n (3)(5)   n          n          n
         Support of High Availability (HA)               n           n (3)(5)   n
         CPU Features                          AC500-eCo  AC500      AC500 V3   AC500-XC   AC500-S (2)  AC500-S-XC (2)
         Performance (time per binary instruction)  0.08 μs  0.0006…0.06 μs  0.01 μs  0.0006…0.06 μs  0.05 μs  0.05 μs
         Program memory                        128...512 kB  128 kB…16 MB  80 MB  128 kB…16 MB  1024 kB  1024 kB
         User data memory                      14...130 kB  128 kB…16 MB        128 kB…16 MB  1024 kB  1024 kB
         Remanent data (= saved)               2 kB      12 kB…3 MB  256 kB     12 kB…3 MB  120 kB    120 kB
         Serial communication
            RS232                                        n           n          n          n          n
            RS485                              n         n           n          n          n          n
            Isolated interface                           n           n          n          n          n
         CAN communication interface
            CANopen Master, J1939 and CAN 2A/2B protocols            n
         Ethernet features on CPU with integrated Ethernet or
         external communication module
            Online access (Programming)        n         n           n          n          n          n
            ICMP (Ping), DHCP, IP configuration protocol  n  n       n (5)      n          n          n
            UDP data enchange, Modbus TCP      n         n           n          n          n          n
         Ethernet features on CPU with integrated Ethernet only
            HTTP (integrated web server)       n         n           n          n          n          n
            HTML 5                                                   n
            SNTP (Time synchronization)        n         n           n (5)      n          n          n
            FTP server                         n         n           n          n          n          n
            FTP client                         n (7)     n (7)                  n (7)      n (7)      n (7)
            SMTP client (Simple Mail Transfer Protocol)  n           n (5)      n          n          n
            IEC 60870-5-104 remote control protocol      n           n          n          n          n
            Network variables on UDP                                 n
            Socket programming                           n           n          n          n          n
            OPC DA                             n         n                      n          n          n
            OPC UA                                                   n
            BACnet (B-ASC profile)               (4)     n (4)                  n (4)      n (4)      n (4)
         Selectable protocol
            EtherCAT Master                              n (6)       n (4)(5)   n (6)
            PROFINET IO Controller                       n (6)       n (4)(5)   n (6)
            EthernetIP Adapter                                       n (4)(5)
         Capability to connect Fieldbus Modules          n           n          n          n          n
         I/Os integrated on CPU                n
         I/O Modules Features                  S500-eCo  S500        S500 V3    S500-XC    S500-S (2)  S500-S-XC (2)
         Analog modules
            Configurable                                 n           n          n
            Dedicated                          n                                           n          n
         Digital modules
            Configurable                                 n           n          n
            Dedicated                          n         n           n          n          n          n
         Transistor outputs short circuit protected      n           n          n          n          n
         Output diagnosis                                n           n          n          n          n
         Extension with S500-eCo and S500(-XC) I/O modules  n  n     n          n          n (2)      n (2)
         n fully
           partly
         (1) Requires Library PS552-MC-E
         (2) AC500-S and AC500-S-XC are extension CPU modules. They require an AC500 or AC500-XC CPU to operate. The latter supports all communication interfaces.
         (3) Requires Library PS5520-MC-E
         (4) Licensed features
         (5) In development
         (6) PM595 only
         (7) application library download from "application examples"
