18 MAIN CATALOG PLC AUTOMATION

01
—

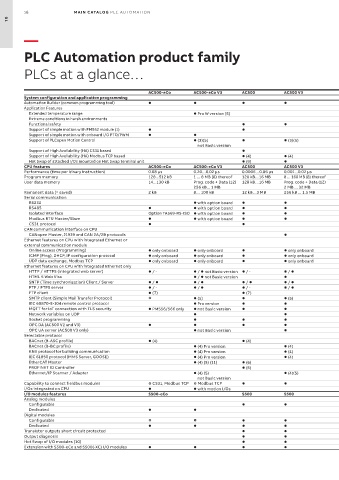

PLC Automation product family

PLCs at a glance…

AC500-eCo AC500-eCo V3 AC500 AC500 V3 AC500-S (2) AC500-XC AC500-XC V3 AC500-S-XC (2)
System configuration and application programming
Automation Builder (common programming tool)        
Application Features
Extended temperature range  Pro W version (5)   
Extreme conditions in harsh environments   
Functional safety      
Support of simple motion with FM562 module (1)     
Support of simple motion with onboard I/O PTO/PWM  
Support of PLCopen Motion Control  (3)(5)   (3)(5)    (3)(5) 
not Basic version
Support of High Availability (HA) CS31 based  
Support of High Availability (HA) Modbus TCP based  (4)  (4)  (4)  (4)
Hot Swap of attached I/Os mounted on Hot Swap terminal unit  (9)   (9) 
CPU features AC500-eCo AC500-eCo V3 AC500 AC500 V3 AC500-S (2) AC500-XC AC500-XC V3 AC500-S-XC (2)
Performance (time per binary instruction) 0.08 μs 0.20…0.02 µs 0.0006…0.06 μs 0.001...0.02 µs 0.05 μs 0.0006…0.06 μs 0.001…0.02 μs 0.05 μs
Program memory 128...512 kB 1 ... 8 MB (8) thereof 128 kB…16 MB 8 ... 160 MB (8) thereof 1...1.3 MB 128 kB…16 MB 8 ... 160 MB (8) thereof 1...1.3 MB
User data memory 14...130 kB Prog. code + Data (12) 128 kB…16 MB Prog. code + Data (12) 1024 kB 128 kB…16 MB Prog. code + Data (12) 1024 kB
256 kB... 1 MB 2 MB ... 32 MB 2 MB ... 32 MB
Remanent data (= saved) 2 kB 8… 100 kB 12 kB…3 MB 256 kB ... 1.5 MB 120 kB 12 kB…3 MB 256 kB…1.5 MB 120 kB
Serial communication
RS232  with option board      
RS485   with option board      
Isolated interface Option TA569-RS-ISO  with option board      
Modbus RTU Master/Slave   with option board      
CS31 protocol     
CAN communication interface on CPU
CANopen Master, J1939 and CAN 2A/2B protocols  
Ethernet features on CPU with integrated Ethernet or
external communication module
Online access (Programming)  only onboard  only onboard   only onboard    only onboard 
ICMP (Ping), DHCP, IP configuration protocol  only onboard  only onboard   only onboard    only onboard 
UDP data exchange, Modbus TCP  only onboard  only onboard   only onboard    only onboard 
Ethernet features on CPU with integrated Ethernet only
HTTP / HTTPS (integrated web server)  / -  /  not Basic version  / -  /   / -  / -  /   / -
HTML 5 Web Visu  /  not Basic version  
SNTP (Time synchronization) Client / Server  /   /   /   /   /   /   /   / 
FTP / FTPS server  / -  /   / -  /   / -  / -  /   / -
FTP client  (7)  (7)  (7)  (7)  (7)
SMTP client (Simple Mail Transfer Protocol)   (5)   (5)   (5) for V3  (5) for V3 
IEC 60870-5-104 remote control protocol  Pro version      
MQTT for IoT connection with TLS security  PM556/566 only  not Basic version      
Network variables on UDP   
Socket programming       
OPC DA (AC500 V2 and V3)        
OPC UA server (AC500 V3 only)  not Basic version  
Selectable protocol
BACnet (B-ASC profile)  (4)  (4)  (4)  (4)  (4)  (4)
BACnet (B-BC profile)  (4) Pro version  (4)  (4)
KNX protocol for building communication  (4) Pro version  (4)  (4)
IEC 61850 protocol (MMS Server, GOOSE)  (4) Pro version  (4)
EtherCAT Master  (4) (5) (11)  (6)  (6)
PROFINET IO Controller  (6)  (6)
Ethernet/IP Scanner / Adapter  (4) (5)  (4)(5)  (4)(5)
not Basic version
Capability to connect fieldbus modules  CS31, Modbus TCP  Modbus TCP      
I/Os integrated on CPU   with motion I/Os
I/O modules features S500-eCo S500 S500 S500-S (2) S500-XC S500-XC S500-S-XC (2)
Analog modules
Configurable    
Dedicated    
Digital modules
Configurable      
Dedicated        
Transistor outputs short circuit protected      
Output diagnosis      
Hot Swap of I/O modules (10)    
Extension with S500-eCo and S500(-XC) I/O modules      (2)    (2)
