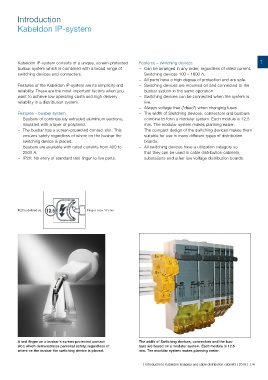

Introduction

Kabeldon IP-system

Kabeldon IP-system consists of a unique, screen-protected Features – switching devices 1
busbar system which is combined with a broad range of − Can be arranged in any order, regardless of rated current.
switching devices and connectors. − Switching devices 100 – 1600 A.
− All parts have a high degree of protection and are safe.
Features of the Kabeldon IP-system are its simplicity and − Switching devices are mounted on and connected to the
reliability. These are the most important factors when you busbar system in the same operation.
want to achieve low operating costs and high delivery − Switching devices can be connected when the system is
reliability in a distribution system. live.
− Always voltage-free (“dead”) when changing fuses.
Features – busbar system − The width of Switching devices, connectors and busbars
− Busbars of continuously extruded aluminium sections, combine to form a modular system. Each module is 12.5
insulated with a layer of polyamid. mm. The modular system makes planning easier.
− The busbar has a screen-protected contact slot. This − The compact design of the switching devices makes them
ensures safety regardless of where on the busbar the suitable for use in many different types of distribution
switching device is placed. boards.
− Busbars are available with rated currents from 400 to − All switching devices have a utilization category so
2500 A. that they can be used in cable distribution cabinets,
− IP2X: No entry of standard test finger to live parts. substations and other low voltage distribution boards.

IP2X is defined as: Finger max 12 mm

A test finger on a busbar‘s screen-protected contact The width of Switching devices, connectors and the bus-
slot; which demonstrates personal safety, regardless of bars are based on a modular system. Each module is 12.5
where on the busbar the switching device is placed. mm. The modular system makes planning easier.

| Introduction | Kabeldon fusegear and cable distribution cabinets | 2016 | 1/4
