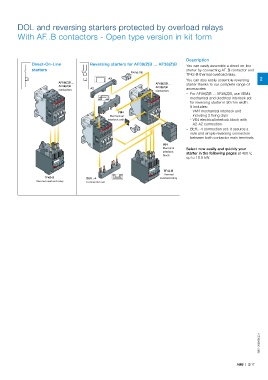

DOL and reversing starters protected by overload relays
With AF..B contactors - Open type version in kit form
Description
Direct-On-Line Reversing starters for AF09(Z)B ... AF38(Z)B You can easily assemble a direct-on-line
starters starter by connecting AF..B contactor and
Fixing clip
TF42-B thermal overload relay.
A2 You can also easily assemble reversing 2
AF09(Z)B ... AF09(Z)B ... starter thanks to our complete range of
AF38(Z)B AF38(Z)B
contactors A2 contactors accessories:
– For AF09(Z)B ... AF38(Z)B, use VEM4
mechanical and electrical interlock set
for reversing starter in 90 mm width.
It includes:
VM4 - VM4 mechanical interlock unit
Mechanical including 2 fixing clips
interlock unit - VE4 electrical interlock block with
A2-A2 connection.
– BER..-4 connection set: it assures a
safe and simple reversing connection
between both contactor main terminals.
VE4
Electrical Select now easily and quickly your
interlock starter in the following pages at 400 V,
block
up to 18.5 kW.
TF42-B
Thermal
TF42-B BER..-4 overload relay
Thermal overload relay Connection set
