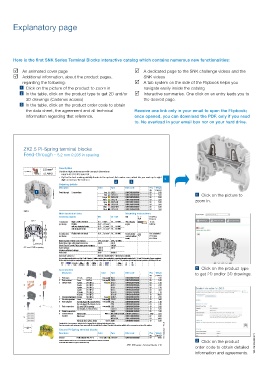

Here is the first SNK Series Terminal Blocks interactive catalog which contains numerous new functionalities:
An animated cover page A dedicated page to the SNK challenge videos and the
Additional information, about the product pages, SNK videos
regarding the following: A tab system on the side of the Flipbook helps you
1 Click on the picture of the product to zoom in navigate easily inside the catalog
2 In the table, click on the product type to get 2D and/or Interactive summaries. One click on an entry leads you to
3D drawings (Cadenas access) the desired page.
3 In the table, click on the product order code to obtain
the data sheet, the agreement and all technical Receive one link only in your email to open the Flipbook;
information regarding that reference. once opened, you can download the PDF, only if you need
to. No overload in your email box nor on your hard drive.
ZK2.5 PI-Spring terminal blocks
Feed-through - 5.2 mm 0.205 in spacing
2.5 mm² Description
Combine high performance with compact dimensions:
12 AWG – 1000 V AC / DC IEC 600 V UL,
– Opt for the best marking visibility thanks to the up-front, fl at marker zone, which lets you mark up to eight
digits or increase the font size. 2
2 3
Ordering details
Description Color Type Order code Pkg Weight
1SNK162052V0014 Blue ZK2.5-BL 1SNK705020R0000 50 5.50 1 Click on the picture to
1 Feed-through 2 connections Grey ZK2.5 1SNK705010R0000 qty 50 (1 pce) g
5.50
50
1SNK705030R0000
5.50
ZK2.5-OR
Orange
Yellow ZK2.5-YL 1SNK705060R0000 50 5.50 zoom in.
Green ZK2.5-GN 1SNK705061R0000 50 5.50
Red ZK2.5-RD 1SNK705062R0000 50 5.50
ZK2.5-WH 1SNK705065R0000 50 5.50
White
Black ZK2.5-BK 1SNK705066R0000 50 5.50
ZK2.5
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
50.9 2" Rigid - Solid / Stranded 0.2 ... 4 mm² 26 ... 12 AWG
1 conductor Wire stripping 11 mm
per clamp Flexible 0.22 ... 2.5 mm² length 0.433 in
with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
with insulated ferrule
0.22 ... 2.5 mm² 26 ... 14 AWG
49.2 1.94" 41.7 1.64" 2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Flat screwdriver
per clamp Tool (for fl exible Ø 3.5 mm
conductor without
ferrule) Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG
24.6 0.97" Rated short-time withstand current (1s) 300 A 396 A
Short Circuit Current Rating (with specifi c conditions) 100 kA
5.2 mm 0.205 in spacing Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 21 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/IIC/IIIC
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certifi cates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx Haz Loc BV DNV
2 Click on the product type
Accessories
Description Color Type Order code Pkg Weight to get 2D and/or 3D drawings.
1 2 qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK2.5 1SNK705910R0000 20 1.80
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles
5 6 4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB5-50 1SNK905350R0000 10 36.00
1SNK900603R0000
10
2.80
JB85-3
32 A (IEC)
5 Circuit separators 3 mm 0.118 in Dark grey CS-R2 1SNK900106R0000 20 3.80
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 8 7 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
8 Shield connectors SHBP 1SNK900601R0000 20 4.10
9 Terminal block Blank marker White MG-CPM-13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
9
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground PI-Spring terminal blocks
1SNK162023S0201 - Rev. B
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profi le aligned with ZK2.5 Green-yellow ZK2.5-PE 1SNK705150R0000 20 10.00
All the technical data for UL/CSA standard and dimensions in inches are in italic. 3 Click on the product
Technical data valid for copper conductors only.
