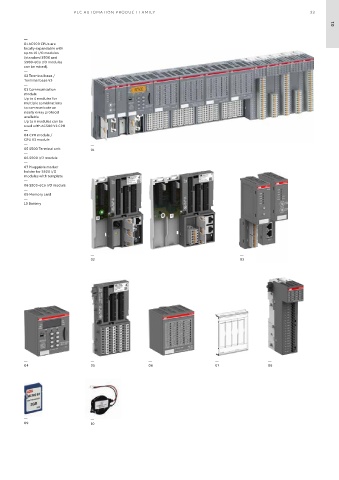

PLC AUTOMATION PRODUCT FAMILY 33
01
—
01 AC500 CPUs are
locally expandable with
up to 10 I/O modules
(standard S500 and
S500-eCo I/O modules
can be mixed).
—
02 Terminal base /
Terminal base V3
—
03 Communication
module
Up to 4 modules for
multiple combinations
to communicate on
nearly every protocol
available
Up to 6 modules can be
used with AC500 V3 CPU
—
04 CPU module /
CPU V3 module
— —
05 S500 Terminal unit 01
—
06 S500 I/O module
—
07 Pluggable marker
holder for S500 I/O
modules with template
—
08 S500-eCo I/O module
—
09 Memory card
—
10 Battery
— —
02 03
— — — — —
04 05 06 07 08
— —
09 10
