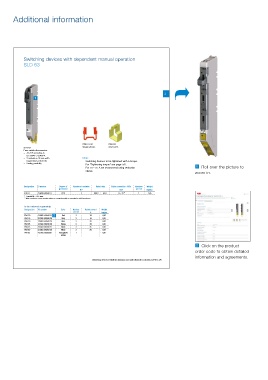

P. 3
Additional information
Switching devices with dependent manual operation
SLD 63
2
1
PDA 10-50 PBA 63
SLD 63 Gauge pieces. Seal cover.
Fuse-switch-disconnector.
− AC-21B according to
IEC 60947-3 at 400 V.
− 3 modules or 38 mm width. Note:
− Diazed fuses, DII or DIII. − Switching devices to be tightened with a torque.
− Sealing possibility. For “Tightening torque” see page 5/6.
− For 10 – 25 A we recommend using reduction 1 Roll over the picture to
sleeve.
zoom in.
Designation ID number Degree of Number of modules Rated data Cable connection Al/Cu Numbers Weight
protection M * mm² per kit kg/pcs
SLD 63 2CGX0 63050110 IP2X 3 400 V 63 A 1,5–25** 1 1,45
* 1 modul M = 12.5 mm.
** Max conductor cross section refers to connection with a stranded or solid conductor.
To be ordered separately:
Designation ID number Color Number Rated current Weight
per kit A kg/pcs
PDA 10 2CGX0 53050131 2 Red 3 10 0,01
PDA 16 2CGX0 53050130 Grey 3 16 0,01
PDA 20 2CGX0 53050129 Blue 3 20 0,01
PDA 25 2CGX0 53050128 Yellow 3 25 0,01
PDA 35 2CGX0 53050127 Black 3 35 0,01
PDA 50 2CGX0 53050126 White 3 50 0,01
PBA 63 2CGX0 53050301 Transparent 1 – 0,01
yellow
2 Click on the product
order code to obtain detailed
information and agreements.
| Switching devices | Kabeldon fusegear and cable distribution cabinets | 2016 | 2/6
