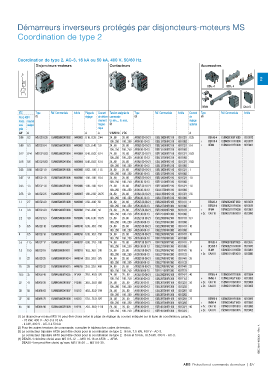

Démarreurs inverseurs protégés par disjoncteurs-moteurs MS

Coordination de type 2

Coordination de type 2, AC-3, 16 kA ou 50 kA, 400 V, 50/60 Hz
Disjoncteurs-moteurs Contacteurs Accessoires

+ 2
I > BEA..-4 BER..-4

VEM4 CA4-10
IEC Type Réf. Commerciale Article Plage de Courant Tension assignée de Type Réf. Commerciale Article Courant Type Réf. Commerciale Article
AC-3, 400 V (1) réglage de déclen- commande (3) de (4)
Puiss. Courant chement Uc min. ... Uc max. réglage
assi- assigné magné- (2) autorisé
gnée tique
kW A A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 H440002 0.16...0.25 2.44 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.25 BEA16-4 1SBN081306T1000 H313073
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 + BER16-4 1SBN081311R1000 H313077
0.09 0.3 MS132-0.4 1SAM350000R1003 H440003 0.25...0.40 3.9 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.4 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.12 0.44 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.18 0.6 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.25 0.85 MS132-1.0 1SAM350000R1005 H440005 0.63...1.00 11.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.37 1.1 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.55 1.5 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.75 1.9 MS132-2.5 1SAM350000R1007 H440007 1.60...2.50 28.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.1 2.7 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 4 BEA26-4 1SBN082306T1000 H313074
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + BER38-4 1SBN082311R1000 H313078
1.5 3.6 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 4 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + 2x CA4-10 1SBN010110R1010 H313000
2.2 4.9 MS132-6.3 1SAM350000R1009 H440009 4.00...6.30 78.75 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 6.3
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093
3 6.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 10
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093
4 8.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 10
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093
5.5 11.5 MS132-12 1SAM350000R1012 H440012 8.00...12.0 180 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 12 BEA38-4 1SBN082306T2000 H313075
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + BER38-4 1SBN082311R1000 H313078
7.5 15.5 MS132-16 1SAM350000R1011 H440011 10.0...16.0 240 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 16 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123 + 2x CA4-10 1SBN010110R1010 H313000
11 22 MS132-25 1SAM350000R1014 H440014 20.0...25.0 375 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 25
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
15 29 MS132-32 1SAM350000R1015 H440015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 32
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
18.5 35 MS450-40 1SAM450000R1005 141204 28.0…40.0 520 24…60 20…60 AF38Z-30-00-21 1SBL296001R2100 H311471 40 BER65-4 1SBN083411R1000 H313094
100...250 100...250 AF38-30-00-13 1SBL297001R1300 H311153 + VM96-4 1SBN033405T1000 H313093
22 41 MS450-50 1SAM450000R1007 141206 36.0…50.0 650 24…60 20…60 AF52-30-00-11 1SBL367001R1100 H313231 50 + 2x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF52-30-00-13 1SBL367001R1300 H313233 + 2x CA4-01 1SBN010110R1001 H313002
30 55 MS495-63 1SAM550000R1007 141212 45.0…63.0 819 24…60 20…60 AF65-30-00-11 1SBL387001R1100 H313261 63
100...250 100...250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 MS495-75 1SAM550000R1008 141213 57.0…75.0 975 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 75 BER96-4 1SBN083911R1000 H313095
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293 + VM96-4 1SBN033405T1000 H313093
45 80 MS495-90 1SAM550000R1009 141214 70.0…90.0 1170 24…60 20…60 AF96-30-00-11 1SBL407001R1100 H313321 90 + 2x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323 + 2x CA4-01 1SBN010110R1001 H313002
(1) Le disjoncteur-moteur MS116 peut être choisi selon la plage de réglage du courant indiquée sur la ligne de coordination, jusqu'à :
- 15 kW, 400 V - AC-3 à 16 kA
- 4 kW, 400 V - AC-3 à 50 kA
(2) Pour les autres tensions de commande, consulter le tableau des codes de tension.
(3) Le contacteur tripolaire AF26 peut être choisi pour la coordination de type 2, 16 kA, 7.5 kW, 400 V - AC-3.
Le contacteur tripolaire AF40 peut être choisi pour la coordination de type 2, 16 kA et 50 kA, 18.5 kW, 400 V - AC-3.
(4) BEA26-4 doit être choisi avec MS116-12 … MS116-16 et AF26 … AF38. 1SBC101916S0301 - Rev. A
BEA38-4 ne peut être choisi qu'avec MS116-20 … MS116-30.

ABB Protection et commande de moteur | 2/7
