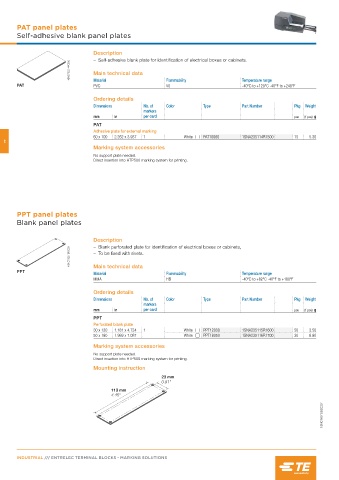

Page 1076 - Entrelec Terminal Blocks Master Catalog

PAT panel plates
Self-adhesive blank panel plates

Description
– Self-adhesive blank plate for identification of electrical boxes or cabinets.
1SNC700214F0000 Main technical data

PAT Material Flammability Temperature range
PVC
-40°C to +120°C -40°F to +248°F
V0
Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card pce (1 pce) g
PAT
Adhesive plate for external marking
60 x 100 2.262 x 3.937 1 White PAT10060 1SNA235114R1500 15 5.30
2
Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.

PPT panel plates
Blank panel plates

Description
– Blank perforated plate for identification of electrical boxes or cabinets,
1SNC700213F0000 – To be fixed with rivets.

PPT Main technical data
Material Flammability Temperature range
MMA HB -40°C to +82°C -40°F to +180°F

Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card pce (1 pce) g
PPT
Perforated blank plate
30 x 120 1.181 x 4.724 1 White PPT12030 1SNA235115R1600 50 3.50
50 x 180 1.969 x 7.087 White PPT18050 1SNA235116R1700 30 8.80

Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.
Mounting instruction
23 mm
0.91"
113 mm
4.45"
1SNC160199S0201

INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
