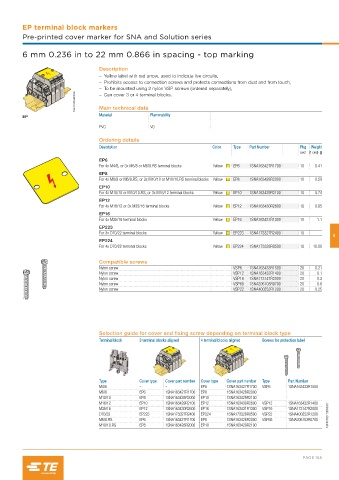

Page 1197 - Entrelec Terminal Blocks Master Catalog

EP terminal block markers
Pre-printed cover marker for SNA and Solution series

6 mm 0.236 in to 22 mm 0.866 in spacing - top marking

Description
– Yellow label with red arrow, used to indicate live circuits,
– Prohibits access to connection screws and protects connections from dust and from touch,
– To be mounted using 2 nylon VSP screws (ordered separately),
1SNC700194F0000 Main technical data
– Can cover 3 or 4 terminal blocks.

Material Flammability
EP
PVC V0
Ordering details
Description Color Type Part Number Pkg Weight
card (1 card) g
EP6
For 4x M4/6, or 3x M6/8 or M6/8.RS terminal blocks Yellow EP6 1SNA163427R1700 10 0.41
EP8
For 4x M6/8 or M6/8.RS, or 3x M10/10 or M10/10.RS terminal blocks Yellow EP8 1SNA163428R2000 10 0.59
EP10
For 4x M10/10 or M10/10.RS, or 3x M16/12 terminal blocks Yellow EP10 1SNA163429R2100 10 0.74
EP12
For 4x M16/12 or 3x M35/16 terminal blocks Yellow EP12 1SNA163430R2600 10 0.85
EP16
For 4x M35/16 terminal blocks Yellow EP16 1SNA163431R1300 10 1.1
EP223
For 3x D70/22 terminal blocks Yellow EP223 1SNA173327R2400 10
5
EP224
For 4x D70/22 terminal blocks Yellow EP224 1SNA173328R0500 10 10.00

Compatible screws
Nylon screw VSP6 1SNA163433R1500 20 0.21
Nylon screw VSP12 1SNA163432R1400 20 0.1
Nylon screw VSP16 1SNA173147R2000 20 0.3
Nylon screw VSP68 1SNA206103R0700 20 0.6
Nylon screw VSP22 1SNA400252R1200 20 0.25

Selection guide for cover and fixing screw depending on terminal block type
Terminal block 3 terminal blocks aligned 4 terminal blocks aligned Screws for protection label

Type Cover type Cover part number Cover type Cover part number Type Part Number
M4/6 – – EP6 1SNA163427R1700 VSP6 1SNA163433R1500
M6/8 EP6 1SNA163427R1700 EP8 1SNA163428R2000
M10/10 EP8 1SNA163428R2000 EP10 1SNA163429R2100
M16/12 EP10 1SNA163429R2100 EP12 1SNA163430R2600 VSP12 1SNA163432R1400
M35/16 EP12 1SNA163430R2600 EP16 1SNA163431R1300 VSP16 1SNA173147R2000
D70/22 EP223 1SNA173327R2400 EP224 1SNA173328R0500 VSP22 1SNA400252R1200 1SNC160158S0201
M6/8.RS EP6 1SNA163427R1700 EP8 1SNA163428R2000 VSP68 1SNA206103R0700
M10/10.RS EP8 1SNA163428R2000 EP10 1SNA163429R2100
