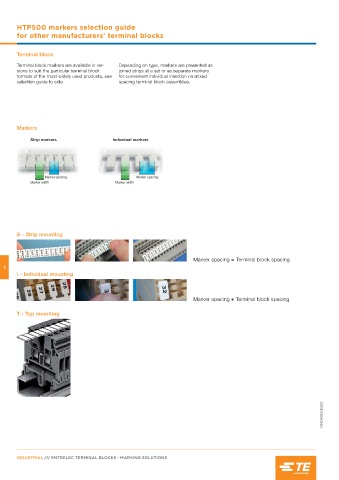

Page 1210 - Entrelec Terminal Blocks Master Catalog
P. 1210
HTP500 markers selection guide
for other manufacturers' terminal blocks
Terminal block
Terminal block markers are available in ver- Depending on type, markers are presented as
sions to suit the particular terminal block joined strips at a set or as separate markers
formats of the most widely used products, see for convenient individual insertion on mixed
selection guide to side. spacing terminal block assemblies.
Markers
Strip markers Individual markers
Marker spacing Marker spacing
Marker width Marker width
S - Strip mounting
Marker spacing = Terminal block spacing
6
I - Individual mounting
Marker spacing ≠ Terminal block spacing
T - Top mounting
1SNC160220S0201
INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
