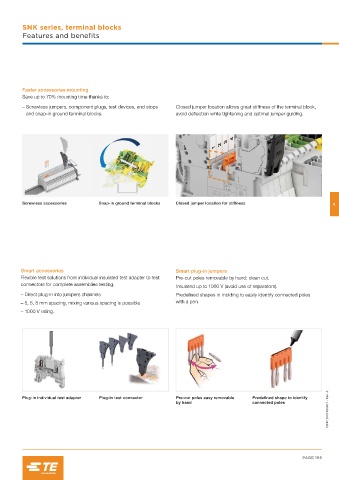

SNK series, terminal blocks
Features and benefits

Faster accessories mounting
Save up to 70% mounting time thanks to:
– Screwless jumpers, component plugs, test devices, end stops Closed jumper location allows great stiffness of the terminal block,
and snap-in ground terminal blocks. avoid deflection while tightening and optimal jumper guiding.

Screwless accessories Snap-in ground terminal blocks Closed jumper location for stiffness 4

Smart accessories Smart plug-in jumpers
Flexible test solutions from individual insulated test adapter to test Pre-cut poles removable by hand: clean cut.
connectors for complete assemblies testing. Insulated up to 1000 V (avoid use of separators).
– Direct plug-in into jumpers channels Predefined shapes in molding to easily identify connected poles
– 5, 6, 8 mm spacing, mixing various spacing is possible with a pen.
– 1000 V rating.

1SNK164014S0201 - Rev. A
Plug-in individual test adapter Plug-in test connector Pre-cut poles easy removable Predefined shape to identify
by hand connected poles
