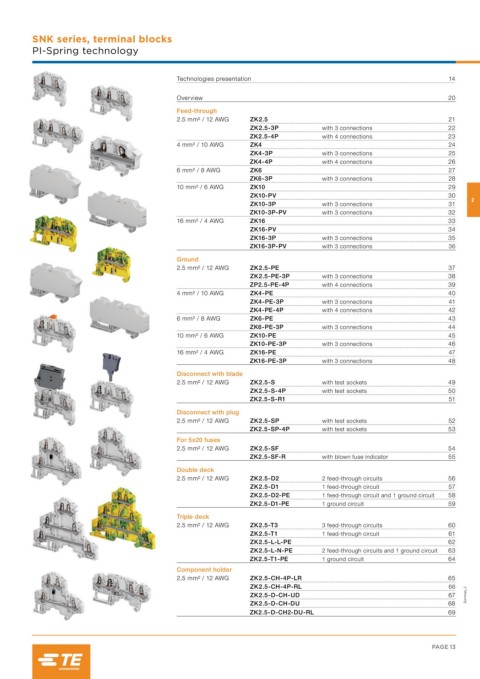

Page 21 - Entrelec Terminal Blocks Master Catalog

SNK series, terminal blocks
PI-Spring technology

Technologies presentation 14

Overview 20
Feed-through
2.5 mm² / 12 AWG ZK2.5 21
ZK2.5-3P with 3 connections 22
ZK2.5-4P with 4 connections 23
4 mm² / 10 AWG ZK4 24
ZK4-3P with 3 connections 25
ZK4-4P with 4 connections 26
6 mm² / 8 AWG ZK6 27
ZK6-3P with 3 connections 28
10 mm² / 6 AWG ZK10 29
ZK10-PV 30
2
ZK10-3P with 3 connections 31
ZK10-3P-PV with 3 connections 32
16 mm² / 4 AWG ZK16 33
ZK16-PV 34
ZK16-3P with 3 connections 35
ZK16-3P-PV with 3 connections 36
Ground
2.5 mm² / 12 AWG ZK2.5-PE 37
ZK2.5-PE-3P with 3 connections 38
ZP2.5-PE-4P with 4 connections 39
4 mm² / 10 AWG ZK4-PE 40
ZK4-PE-3P with 3 connections 41
ZK4-PE-4P with 4 connections 42
6 mm² / 8 AWG ZK6-PE 43
ZK6-PE-3P with 3 connections 44
10 mm² / 6 AWG ZK10-PE 45
ZK10-PE-3P with 3 connections 46
16 mm² / 4 AWG ZK16-PE 47
ZK16-PE-3P with 3 connections 48
Disconnect with blade
2.5 mm² / 12 AWG ZK2.5-S with test sockets 49
ZK2.5-S-4P with test sockets 50
ZK2.5-S-R1 51
Disconnect with plug
2.5 mm² / 12 AWG ZK2.5-SP with test sockets 52
ZK2.5-SP-4P with test sockets 53
For 5x20 fuses
2.5 mm² / 12 AWG ZK2.5-SF 54
ZK2.5-SF-R with blown fuse indicator 55
Double deck
2.5 mm² / 12 AWG ZK2.5-D2 2 feed-through circuits 56
ZK2.5-D1 1 feed-through circuit 57
ZK2.5-D2-PE 1 feed-through circuit and 1 ground circuit 58
ZK2.5-D1-PE 1 ground circuit 59
Triple deck
2.5 mm² / 12 AWG ZK2.5-T3 3 feed-through circuits 60
ZK2.5-T1 1 feed-through circuit 61
ZK2.5-L-L-PE 62
ZK2.5-L-N-PE 2 feed-through circuits and 1 ground circuit 63
ZK2.5-T1-PE 1 ground circuit 64
Component holder
2.5 mm² / 12 AWG ZK2.5-CH-4P-LR 65
ZK2.5-CH-4P-RL 66
ZK2.5-D-CH-UD 67 Summary_2
ZK2.5-D-CH-DU 68
ZK2.5-D-CH2-DU-RL 69
