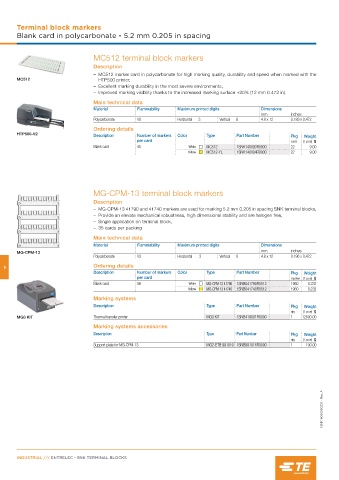

Page 252 - Entrelec Terminal Blocks Master Catalog

Terminal block markers
Blank card in polycarbonate - 5.2 mm 0.205 in spacing

MC512 terminal block markers
Description
– MC512 marker card in polycarbonate for high marking quality, durability and speed when marked with the
MC512 HTP500 printer,
– Excellent marking durability in the most severe environments,
– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in).
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
Polycarbonate V0 Horizontal 3 Vertical 8 4.8 x 12 0.189 x 0.472
Ordering details
HTP500-V2
Description Number of markers Color Type Part Number Pkg Weight
per card card (1 pce) g
Blank card 45 White MC512 1SNK140000R0000 22 9.00
Yellow MC512-YL 1SNK140004R0000 22 9.00

MG-CPM-13 terminal block markers
Description
– MG-CPM-13 41790 and 41740 markers are used for marking 5.2 mm 0.205 in spacing SNK terminal blocks,
– Provide an elevate mechanical robustness, high dimensional stability and are halogen free,
– Single application on terminal block,
– 35 cards per packing
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
MG-CPM-13
Polycarbonate V2 Horizontal 3 Vertical 8 4.8 x 12 0.196 x 0.472
6 Ordering details
Description Number of markers Color Type Part Number Pkg Weight
per card marker (1 pce) g
Blank card 56 White MG-CPM 13 41790 1SNB041790R0512 1960 0.232
Yellow MG-CPM 13 41740 1SNB041740R0512 1960 0.232
Marking systems
Description Type Part Number Pkg Weight
qty (1 pce) g
MG3 KIT Thermal transfer printer MG3 KIT 1SNB419001R0000 1 12600.00
Marking systems accessories
Description Type Part Number Pkg Weight
qty (1 pce) g
Support plate for MG-CPM-13 MG2-ETB 991016 1SNB991016R0000 1 100.00

1SNK160003S0201 - Rev. A

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
