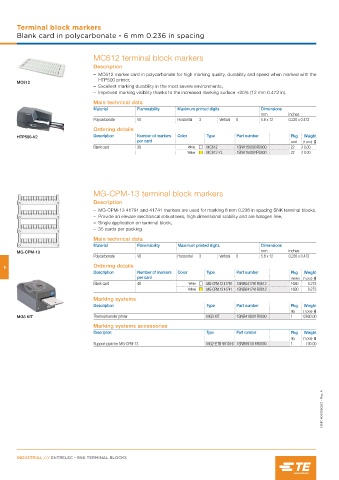

Page 258 - Entrelec Terminal Blocks Master Catalog

Terminal block markers
Blank card in polycarbonate - 6 mm 0.236 in spacing

MC612 terminal block markers
Description
– MC612 marker card in polycarbonate for high marking quality, durability and speed when marked with the
HTP500 printer,
MC612
– Excellent marking durability in the most severe environments,
– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in).
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
Polycarbonate V0 Horizontal 3 Vertical 8 5.6 x 12 0.220 x 0.472
Ordering details
HTP500-V2 Description Number of markers Color Type Part number Pkg Weight
per card card (1 pce) g
Blank card 39 White MC612 1SNK150000R0000 22 10.00
Yellow MC612-YL 1SNK150004R0000 22 10.00

MG-CPM-13 terminal block markers
Description
– MG-CPM-13 41791 and 41741 markers are used for marking 6 mm 0.236 in spacing SNK terminal blocks,
– Provide an elevate mechanical robustness, high dimensional stability and are halogen free,
– Single application on terminal block,
– 35 cards per packing.
Main technical data
Material Flammability Maximum printed digits Dimensions
MG-CPM-13 mm inches
Polycarbonate V0 Horizontal 3 Vertical 8 5.6 x 12 0.236 x 0.472
6 Ordering details
Description Number of markers Color Type Part number Pkg Weight
per card marker (1 pce) g
Blank card 48 White MG-CPM 13 41791 1SNB041791R0612 1680 0.273
Yellow MG-CPM 13 41741 1SNB041741R0612 1680 0.273
Marking systems
Description Type Part number Pkg Weight
qty (1 pce) g
MG3 KIT Thermal transfer printer MG3 KIT 1SNB419001R0000 1 12600.00
Marking systems accessories
Description Type Part number Pkg Weight
qty (1 pce) g
Support plate for MG-CPM-13 MG2-ETB 991016 1SNB991016R0000 1 100.00

1SNK160006S0201 - Rev. A

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
