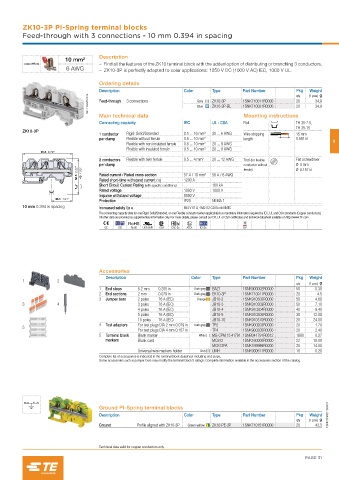

Page 39 - Entrelec Terminal Blocks Master Catalog

ZK10-3P PI-Spring terminal blocks
Feed-through with 3 connections - 10 mm 0.394 in spacing

Description
10 mm²
– Find all the features of the ZK10 terminal block with the added option of distributing or branching 3 conductors,
6 AWG – ZK10-3P is perfectly adapted to solar applications: 1250 V DC (1000 V AC) IEC, 1000 V UL.

Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
1SNK162095V0014 Feed-through 3 connections Grey ZK10-3P 1SNK710011R0000 20 34.9
qty
1SNK710021R0000
ZK10-3P-BL
34.9
20
Blue
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZK10-3P
1 conductor Rigid: Solid/Stranded 0.5 ... 16 mm² 20 ... 6 AWG Wire stripping 15 mm
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.591 in 2
Flexible with non insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
96.3 3.79"
2 conductors Flexible with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Tool (for flexible Flat screwdriver
per clamp conductor without Ø 4 mm
56.5 2.22" 49 1.93" Rated current / Rated cross section 57 A / 10 mm² 56 A / 6 AWG ferrule) Ø 0.157 in
Rated short-time withstand current (1s)
Short Circuit Current Rating (with specific conditions) 1200 A 100 kA
Rated voltage 1000 V 1000 V
Impulse withstand voltage 8000 V
40.8 1.61"
Protection IP20 NEMA 1
10 mm 0.394 in spacing Increased safety Ex e 693 V 57 A - IM2 II 2 GD Ex eb I/II/IIIC
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK10-3P 1SNK710911R0000 20 4.5
3 Jumper bars 2 poles 76 A (IEC) Orange JB10-2 1SNK910302R0000 50 4.60
3 4 3 poles 76 A (IEC) JB10-3 1SNK910303R0000 50 7.10
4 poles 76 A (IEC) JB10-4 1SNK910304R0000 40 9.40
5 poles 76 A (IEC) JB10-5 1SNK910305R0000 30 12.00
10 poles 76 A (IEC) JB10-10 1SNK910310R0000 20 24.00
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
5
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162061S0201
qty (1 pce) g
Ground Profile aligned with ZK10-3P Green-yellow ZK10-PE-3P 1SNK710151R0000 20 43.3

Technical data valid for copper conductors only.
PAGE 31
