P. 591

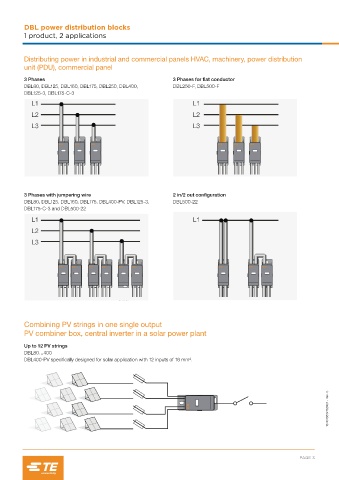

DBL power distribution blocks
          1 product, 2 applications



          Distributing power in industrial and commercial panels HVAC, machinery, power distribution
          unit (PDU), commercial panel

          3 Phases                                            3 Phases for flat conductor
          DBL80, DBL125, DBL160, DBL175, DBL250, DBL400,      DBL250-F, DBL500-F
          DBL125-3, DBL175-C-3
            L1                                                       L1

            L2                                                       L2
            L3                                                       L3













          3 Phases with jumpering wire                        2 in/2 out configuration
          DBL80, DBL125, DBL160, DBL175, DBL400-PV, DBL125-3,   DBL500-22
          DBL175-C-3 and DBL500-22

            L1                                                       L1
            L2
            L3
















          Combining PV strings in one single output
          PV combiner box, central inverter in a solar power plant

          Up to 12 PV strings
          DBL80…400
          DBL400-PV specifically designed for solar application with 12 inputs of 16 mm².






                                                                                                                    1SNC166027S0201 - Rev. C












                                                                                                          PAGE 3
