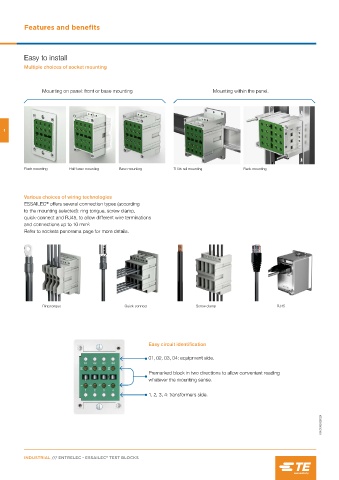

Features and benefits

Easy to install
Multiple choices of socket mounting

Mounting on panel: front or base mounting Mounting within the panel.

1

Flush mounting Half-base mounting Base mounting TH35 rail mounting Rack mounting

Various choices of wiring technologies
®
ESSAILEC offers several connection types (according
to the mounting selected): ring tongue, screw clamp,
quick-connect and RJ45, to allow different wire terminations
and connections up to 10 mm².
Refer to sockets panorama page for more details.

Ring tongue Quick-connect Screw clamp RJ45

Easy circuit identification

01, 02, 03, 04: equipment side.

Premarked block in two directions to allow convenient reading
whatever the mounting sense.

1, 2, 3, 4: transformers side.

1SNC169002S0201

®
INDUSTRIAL /// ENTRELEC - ESSAILEC TEST BLOCKS
