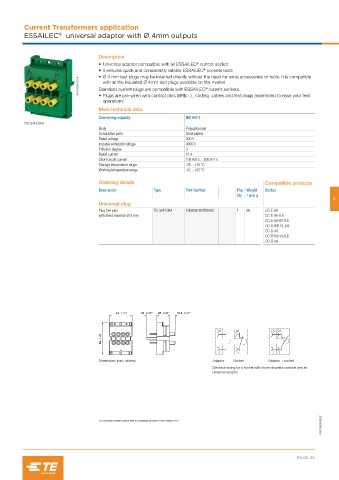

Current Transformers application
®
ESSAILEC universal adaptor with Ø 4mm outputs

Description
®
• Universal adaptor compatible with all ESSAILEC current socket
®
• It ensures quick and consistently reliable ESSAILEC sockets tests
• Ø 4 mm test plugs may be inserted directly without the need for extra accessories or tools. It is compatible
1SNC169154V0014 Standard current plugs are compatible with ESSAILEC current sockets.
with all the insulated Ø 4mm test plugs available on the market
®
• Plugs are pre-wired with contact pins (BRE...) , coding, cables and test plugs assembled to ease your test
operations.
Main technical data
Connecting capacity IEC 947-1
FIC-2/4-DIA4
Body Polycarbonate
Conductive parts Gold-plated
Rated voltage 400 V
Impulse withstand voltage 4000 V
Pollution degree 3
Rated current 15 A
Short-circuit current 100 A/5 s ... 200 A/1 s
Storage temperature range -25 ... +70 °C
Working temperature range -10 ... +55 °C

Ordering details Compatible products
Description Type Part Number Pkg Weight Socket
qty 1 pce g
3
Universal plug
Plug 2x4 pins FIC-2/4-DIA4 1SNA167937R0000 1 60 CC-E-VA
with direct insertion Ø 4 mm CC-E-VA-6.6
CC-E-VA-R2-6.6
CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
CC-R-VA

44 1.73" 20 0.78" 25 0.98" 10.5 0.41"

01 01 01 01
63 2.48"

1 1 1 1
Dimensions (mm, inches) Adaptor Socket Adaptor + socket
Electrical wiring for a socket with short-circuited contacts and an
universal adaptor

1SNC169018S0201
For connection details, please refer to mounting instruction 1SNC169041L0201
