P. 694

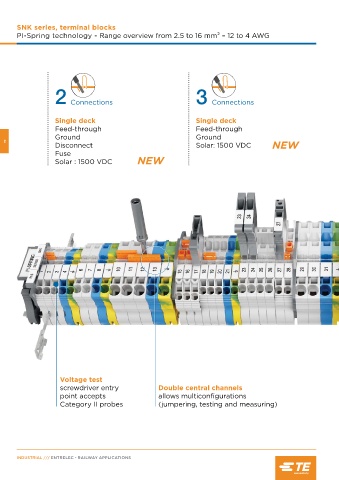

SNK series, terminal blocks
       PI-Spring technology - Range overview from 2.5 to 16 mm2 – 12 to 4 AWG











                    2     Connections                                 3    Connections




                    Single deck                                       Single deck
                    Feed-through                                      Feed-through
                    Ground                                            Ground
  2
                    Disconnect                                        Solar: 1500 VDC            NEW
                    Fuse
                    Solar : 1500 VDC             NEW














































                      Voltage test
                      screwdriver entry                  Double central channels
                      point accepts                      allows multiconfigurations
                      Category II probes                 (jumpering, testing and measuring)










       INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
