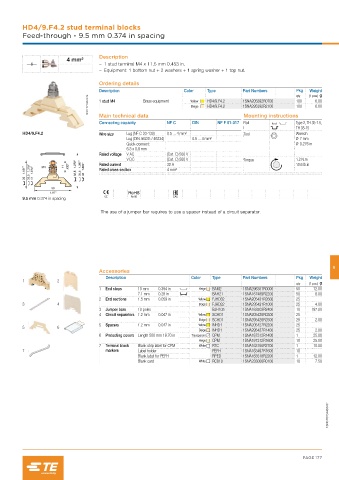

HD4/9.F4.2 stud terminal blocks
Feed-through - 9.5 mm 0.374 in spacing

Description
4 mm²
– 1 stud terminal M4 x 11.5 mm 0.453 in,
– Equipment: 1 bottom nut + 2 washers + 1 spring washer + 1 top nut.

Ordering details
Weight
Description Color Type Part Numbers Pkg (1 pce) g
qty
1SNC167109V0014 1 stud M4 Brass equipment Yellow HD4/9.F4.2 1SNA205392R0700 100 6.00
HD4/9.F4.2
1SNA295392R2100
100
6.00
Beige
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
HD4/9.F4.2 Wire size Lug (NF C 20-130) 0.5 ... 4 mm² Tool Wrench
Lug (DIN 46235 / 46234) 0.5 ... 4 mm² Ø 7 mm
Quick-connect: Ø 0.276 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 500 V
V DC (Cat. C) 500 V Torque 1.2 N.m
Rated current 32 A 10.6 lb.in
Rated cross section 4 mm²

CE RoHS EAC
9.5 mm 0.374 in spacing
The use of a jumper bar requires to use a spacer instead of a circuit separator.

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
7.1 mm 0.28 in BAH21 1SNA167489R2200 50 8.00
2 End sections 1.5 mm 0.059 in Yellow FJHD32 1SNA205431R2600 25
3 4 Beige FJHD32 1SNA295431R1000 25 4.00
3 Jumper bars 10 poles BJH105 1SNA163503R2400 10 197.00
4 Circuit separators 1.2 mm 0.047 in Yellow SCHD1 1SNA205428R0300 25
Beige SCHD1 1SNA295428R2500 25 2.00
5 Spacers 1.2 mm 0.047 in Yellow INHD1 1SNA205427R2200 25
5 6
Beige INHD1 1SNA295427R1400 25 2.00
6 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
7 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
7 markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167044S0201
