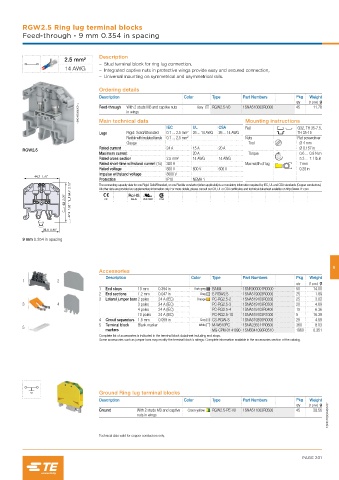

RGW2.5 Ring lug terminal blocks
Feed-through - 9 mm 0.354 in spacing

Description
2.5 mm²
– Stud terminal block for ring lug connection,
14 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC168064V0014 in wings
RGW2.5-V0
With 2 studs M3 and captive nuts
45
11.78
Feed-through
1SNA510003R0000
Grey
Main technical data
IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 0.1 … 2.5 mm² 26 ... 14 AWG 26 ... 14 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 2.5 mm² Nuts Flat screwdriver
Gauge Tool Ø 4 mm
Rated current 24 A 15 A 20 A Ø 0.157 in
RGW2.5
Maximum current 20 A Torque 0.6 ... 0.8 N.m
Rated cross section 2.5 mm² 14 AWG 14 AWG 5.3 ... 7.1 lb.in
Rated short-time withstand current (1s) 300 A Max width of lug 7 mm
Rated voltage 800 V 600 V 600 V 0.28 in
Impulse withstand voltage 8000 V
44.7 1.76"
Protection IP10 NEMA 1
54.7 2.15" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
52 2.05" CE RoHS USR CNR CSA
47.2 1.86"
22.4 0.88"
9 mm 0.354 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 1.2 mm 0.047 in Grey E-RGW2.5 1SNA519003R0000 25 1.89
3 Lateral jumper bars 2 poles 24 A (IEC) Orange PC-RG2.5-2 1SNA519103R0200 25 3.02
3 4 3 poles 24 A (IEC) PC-RG2.5-3 1SNA519103R0300 20 4.69
4 poles 24 A (IEC) PC-RG2.5-4 1SNA519103R0400 15 6.36
10 poles 24 A (IEC) PC-RG2.5-10 1SNA519103R1000 5 16.39
4 Circuit separators 1.5 mm 0.059 in Grey CS-RGW-S 1SNA519200R0000 25 4.59
5 Terminal block Blank marker White M-W610PC 1SNA235511R0600 360 8.03
5
markers MG-CPM-01 41090 1SNB041090R0510 1960 0.351
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground Ring lug terminal blocks
Description Color Type Part Numbers Pkg Weight
1SNC168024S0201
qty (1 pce) g
Ground With 2 studs M3 and captive Green-yellow RGW2.5-PE-V0 1SNA511003R0500 45 28.56
nuts in wings

Technical data valid for copper conductors only.
