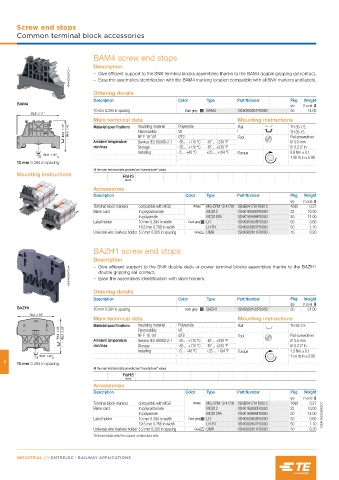

P. 992

Screw end stops
       Common terminal block accessories



                                  BAM4 screw end stops
                                  Description
                         1SNK160333V0014    – Give efficient support to the SNK terminal blocks assemblies thanks to the BAM4 double gripping rail contact,
                                     – Ease the assemblies identification with the BAM4 marking location compatible with all SNK markers and labels.

                                  Ordering details
                                  Description                   Color     Type      Part Number        Pkg  Weight
       BAM4                                                                                            qty  (1 pce) g
                                  10 mm 0.394 in spacing          Dark grey  BAM4   1SNK900001R0000    50    14.00
            53.6  2.11"
                                  Main technical data                                Mounting instructions
                       43.7  1.72"  36.2  1.42"  Material specifications  Insulating material  Polyamide  Rail  TH 35-7.5,
                                                 Flammability
                                                                V0
                                                                                                       TH 35-15
                                                 Service IEC 60068-2-1
                                  Ambient temperature  NF F 16 101  I2F2  -67 ... +230 °F  Tool        Flat screwdriver
                                                                                                       Ø 5.5 mm
                                                                -55 ... +110 °C
                                  min/max        Storage        -55 ... +110 °C  -67 ... +230 °F       Ø 0.217 in
                                                 Installing     -5 ... +40 °C  +23 ... +104 °F  Torque  0.9 Nm ± 0.1
                26.8  1.06"
                                                                                                       7.08  lb.in ± 0.88
       10 mm 0.394 in spacing
                                  All the main technical data provided are "manufacturer" values
       Mounting instructions
                                             RoHS
                                  Accessories
                                  Description                     Color   Type      Part Number        Pkg  Weight
                                                                                                       qty  (1 pce) g
                                  Terminal block markers  compatible with MG3  White  MG-CPM 13 41791 1SNB041791R0612  1680  0.27
                                  Blank card      In polycarbonate        MC812     1SNK160000R0000    22    10.00
                                                  In polyamide            MC812PA   1SNK169999R0000    20    14.00
                                  Label holder    10 mm 0.394 in width  Dark grey  LH  1SNK900605R0000  50    0.60
                                                  19.5 mm 0.768 in width  LH-R1     1SNK900607R0000    50     1.10
                                  Universal wire markers holder 5.2 mm 0.205 in spacing  Grey  UMH  1SNK900611R0000  10  0.20

                                  BAZH1 screw end stops
                                  Description
                                     – Give efficient support to the SNK double deck or power terminal blocks assemblies thanks to the BAZH1
                         1SNK160094F0014    – Ease the assemblies identification with label holders.
                                    double gripping rail contact,


                                  Ordering details
                                  Description                   Color     Type      Part Number        Pkg  Weight
                                                                                                       qty  (1 pce) g
       BAZH1                      10 mm 0.394 in spacing          Dark grey  BAZH1  1SNK900102R0000    20    24.00
           74.4  2.93"
                                  Main technical data                                Mounting instructions
                                  Material specifications  Insulating material  Polyamide  Rail         TH 35-7.5
                      73.2  2.88"  65.7  2.59"   Flammability   V0                   Tool              Flat screwdriver
                                                                I2F2
                                                 NF F 16 101
                                  Ambient temperature  Service IEC 60068-2-1  -55 ... +110 °C  -67 ... +230 °F  Ø 5.5 mm
                                  min/max        Storage        -55 ... +110 °C  -67 ... +230 °F       Ø 0.217 in
                                                 Installing     -5 ... +40 °C  +23 ... +104 °F  Torque  1.3 Nm ± 0.1
               37.2  1.46"                                                                             11.4  lb.in ± 0.88
  9
       10 mm 0.394 in spacing
                                  All the main technical data provided are "manufacturer" values
                                             RoHS
                                  Accessories
                                  Description                     Color   Type      Part Number        Pkg  Weight
                                                                                                       qty  (1 pce) g
                                  Terminal block markers  compatible with MG3  White  MG-CPM 13 41791 1SNB041791R0612  1680  0.27
                                  Blank card      In polycarbonate        MC812     1SNK160000R0000    22    10.00
                                                  In polyamide            MC812PA   1SNK169999R0000    20    14.00  1SNK160026S0201
                                  Label holder    10 mm 0.394 in width  Dark grey  LH  1SNK900605R0000  50    0.60
                                                  19.5 mm 0.768 in width  LH-R1     1SNK900607R0000    50     1.10
                                  Universal wire markers holder 5.2 mm 0.205 in spacing  Grey  UMH  1SNK900611R0000  10  0.20

                                  Technical data valid for copper conductors only.
