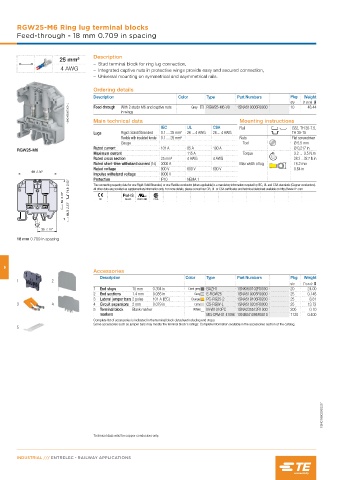

RGW25-M6 Ring lug terminal blocks
Feed-through - 18 mm 0.709 in spacing

Description
25 mm²
– Stud terminal block for ring lug connection,
4 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC168067V0014 in wings
48.44
With 2 studs M6 and captive nuts
Feed-through
RGW25-M6-V0
1SNA510006R0000
10
Grey
Main technical data
IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 0.1 … 25 mm² 26 ... 4 AWG 26 ... 4 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 25 mm² Nuts Flat screwdriver
Gauge Tool Ø 5.5 mm
Rated current 101 A 85 A 100 A Ø 0.217 in
RGW25-M6
Maximum current 115 A Torque 3.2 ... 3.5 N.m
Rated cross section 25 mm² 4 AWG 4 AWG 28.3 ...32.7 lb.in
Rated short-time withstand current (1s) 3000 A Max width of lug 16.2 mm
Rated voltage 800 V 600 V 600 V 0.64 in
60 2.36"
Impulse withstand voltage 8000 V
Protection IP10 NEMA 1
71.8 2.83" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
69 2.72" CE RoHS USR CNR CSA
64.3 2.53"
30 1.18"
18 mm 0.709 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1.4 mm 0.055 in Grey E-RGW25 1SNA519005R0000 25 0.146
3 Lateral jumper bars 2 poles 101 A (IEC) Orange PC-RG25-2 1SNA519106R0200 25 8.81
3 4 4 Circuit separators 2 mm 0.079 in Grey CS-RGW-L 1SNA519201R0000 25 13.72
5 Terminal block Blank marker White M-W1010PC 1SNA235512R1000 200 0.10
markers MG-CPM-01 41096 1SNB041096R0810 1120 0.400
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
5

1SNC168029S0201

Technical data valid for copper conductors only.
