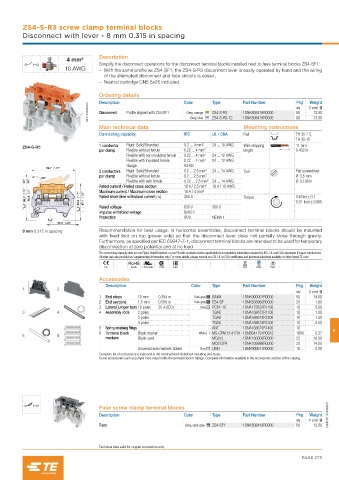

Page 275 - Railways Applications Terminal blocks

ZS4-S-R3 screw clamp terminal blocks
Disconnect with lever - 8 mm 0.315 in spacing

Description
4 mm²
Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks ZS4-SF1:
10 AWG – With the same profile as ZS4-SF1, the ZS4-S-R3 disconnect lever is easily operated by hand and the wiring
of the alternated disconnect and fuse circuits is easier.,
– Neutral cartridge CN5 5x25 included.
Ordering details Color Type Part Number Pkg Weight
Description
1SNK161032F0014 Disconnect Profile aligned with ZS4-SF1 Grey, orange ZS4-S-R3 1SNK508416R0000 qty (1 pce) g
13.30
50
13.30
1SNK508419R0000
50
ZS4-S-R3-T2
Grey, blue
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZS4-S-R3 1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 4 mm² length 0.432 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3
59.7 2.35"
2 conductors Rigid: Solid/Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.2 ... 2.5 mm² Ø 3.5 mm
180°
90° 90° Flexible with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.138 in
Rated current / Rated cross section 18 A / 2.5 mm² 18 A / 10 AWG
96.3 3.79" 88.8 3.5" 54.6 2.15" 47.1 1.85" Maximum current / Maximum cross section 18 A / 4 mm² Torque 0.6 Nm ± 0.1
300 A
Rated short-time withstand current (1s)
Rated voltage 630 V 300 V 5.31 lb.in ± 0.885
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
32.9 1.30"
8 mm 0.315 in spacing Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
with fixed foot on top (power side) so that the disconnect lever does not partially close through gravity.
Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
disconnection at zero potential and at no load.
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CNR CSA EAC BV DNV Rina

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 1.5 mm 0.059 in Dark grey ES4-SF 1SNK508960R0000 20 1.80
3 Lateral jumper bars 10 poles 35 A (IEC) Grey PC81-10 1SNA173523R1100 10 5.00
3 4 4 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles TGA8 1SNA168673R1200 10 1.50
4 poles TGA8 1SNA168674R1300 10 2.00
5 Spring retaining Rings ANT 1SNA168675R1400 10
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27 8
5 6
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Fuse screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161044S0201
qty (1 pce) g
Fuse Grey, dark grey ZS4-SF1 1SNK508410R0000 50 13.30

Technical data valid for copper conductors only.
PAGE 273
