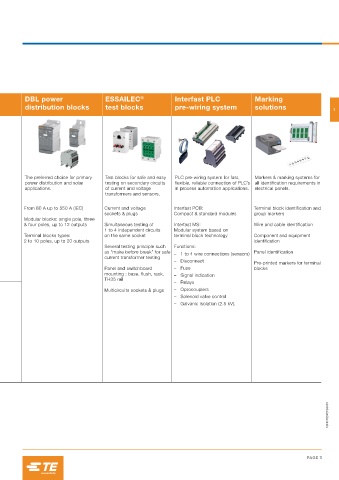

DBL power ESSAILEC Interfast PLC Marking
®
distribution blocks test blocks pre-wiring system solutions 1

The preferred choice for primary Test blocks for safe and easy PLC pre-wiring system for fast, Markers & marking systems for
power distribution and solar testing on secondary circuits flexible, reliable connection of PLC’s all identification requirements in
applications. of current and voltage in process automation applications. electrical panels.
transformers and sensors.

From 80 A up to 550 A (IEC) Current and voltage Interfast PCB: Terminal block identification and
sockets & plugs Compact & standard modules group markers
Modular blocks: single pole, three
& four poles, up to 12 outputs Simultaneous testing of Interfast MS: Wire and cable identification
1 to 4 independent circuits Modular system based on
Terminal blocks types: on the same socket terminal block technology Component and equipment
2 to 10 poles, up to 20 outputs identification
Several testing principle such Functions:
as “make before break” for safe – 1 to 4 wire connections (sensors) Panel identification
current transformer testing
– Disconnect
Pre-printed markers for terminal
Panel and switchboard – Fuse blocks
mounting : base, flush, rack, – Signal indication
TH35 rail
– Relays
Multicircuits sockets & plugs – Optocouplers
– Solenoid valve control
– Galvanic isolation (2.5 kV).

1SNC160261S0201
