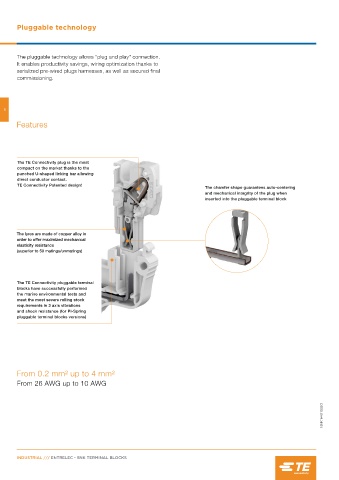

Page 12 - SNK SERIES TERMINAL BLOCKS

Pluggable technology

The pluggable technology allows "plug and play" connection.
It enables productivity savings, wiring optimization thanks to
serialized pre-wired plugs harnesses, as well as secured final
commissioning.

1

Features

The TE Connectivity plug is the most
compact on the market thanks to the
punched U-shaped linking bar allowing
direct conductor contact.
TE Connectivity Patented design!
The chamfer shape guarantees auto-centering
and mechanical integrity of the plug when
inserted into the pluggable terminal block

The lyres are made of copper alloy in
order to offer maximized mechanical
elasticity resistance
(superior to 50 matings/unmatings)

The TE Connectivity pluggable terminal
blocks have successfully performed
the marine environmental tests and
meet the most severe rolling stock
requirements in 3 axis vibrations
and shock resistance (for PI-Spring
pluggable terminal blocks versions)

From 0.2 mm² up to 4 mm²

From 26 AWG up to 10 AWG

1SNK164011S0201
