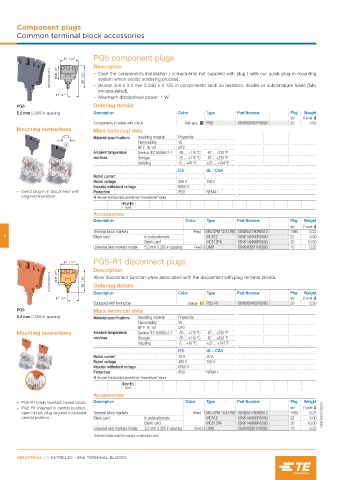

Page 216 - SNK SERIES TERMINAL BLOCKS

Component plugs
Common terminal block accessories

31 1.22" PG5 component plugs
Description
1SNK160022F0014 24.6 .97" 39 1.54" – Ease the components installation ( components not supplied with plug ) with our quick plug-in mounting
system which avoids soldering process,
– Accept 8.8 x 3.2 mm 0.346 x 0.125 in components such as resistors, diodes or subminiature fuses (fully
encapsulated),
17 .67"
– Maximum dissipatived power: 1 W.
PG5 Ordering details
5.2 mm 0.205 in spacing Description Color Type Part Number Pkg Weight
qty (1 pce) g
Components in series with circuit Dark grey PG5 1SNK900401R0000 20 3.50
Mounting instructions Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA
Rated current
Rated voltage 400 V 150 V
Impulse withstand voltage 6000 V
– Direct plug-in in disconnect with Protection IP20 NEMA 1
plug terminal block All the main technical data provided are "manufacturer" values
RoHS
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
5 Blank card In polycarbonate MC512 1SNK140000R0000 22 9.00
Blank card MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

31 1.22" PG5-R1 disconnect plugs
Description
1SNK160120F0014 24.6 .97" 39 1.54" Allow disconnect function when associated with the disconnect with plug terminal blocks.
Ordering details
Description Color Type Part Number Pkg Weight
17 .67" qty (1 pce) g
Equipped with linking bar Orange PG5-R1 1SNK900402R0000 20 3.50
PG5 Main technical data
5.2 mm 0.205 in spacing Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F3
Mounting instructions Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA
Rated current 18 A 20 A
Rated voltage 400 V 150 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
All the main technical data provided are "manufacturer" values

RoHS
Accessories
– PG5-R1 totally inserted: closed circuit, Description Color Type Part Number Pkg Weight
– PG5-R1 inserted in central position: qty (1 pce) g
open circuit, plug secured in isolated Terminal block markers White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
central position Blank card In polycarbonate MC512 1SNK140000R0000 22 9.00 1SNK160037S0201
Blank card MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
