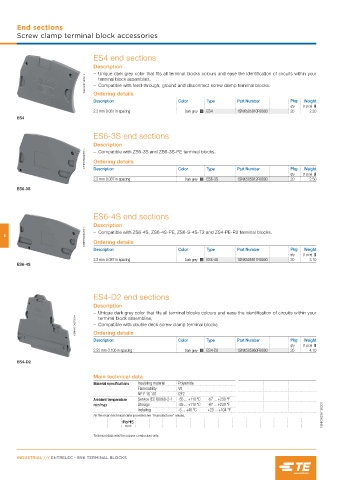

Page 224 - SNK SERIES TERMINAL BLOCKS

End sections
Screw clamp terminal block accessories

ES4 end sections
Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
1SNK161013F0014 – Compatible with feed-through, ground and disconnect screw clamp terminal blocks.
terminal block assemblies,
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2.2 mm 0.087 in spacing Dark grey ES4 1SNK505910R0000 20 2.20
ES4

ES6-3S end sections
Description
1SNK160229V0014 Ordering details
– Compatible with ZS6-3S and ZS6-3S-PE terminal blocks.

Description
Part Number
Type
Pkg
Color
Weight
qty (1 pce) g
2.2 mm 0.087 in spacing Dark grey ES6-3S 1SNK505912R0000 20 2.50
ES6-3S
ES6-4S end sections
Description
1SNK160230V0014 Ordering details
5 – Compatible with ZS6-4S, ZS6-4S-PE, ZS6-S-4S-T2 and ZS4-PE-R2 terminal blocks.

Description Color Type Part Number Pkg Weight
qty (1 pce) g
2.2 mm 0.087 in spacing Dark grey ES6-4S 1SNK505911R0000 20 3.10
ES6-4S

ES4-D2 end sections

Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
1SNK161012F0014 – Compatible with double deck screw clamp terminal blocks
terminal block assemblies,
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2.55 mm 0.100 in spacing Dark grey ES4-D2 1SNK505960R0000 20 4.10

ES4-D2

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values. 1SNK160061S0201
RoHS

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
