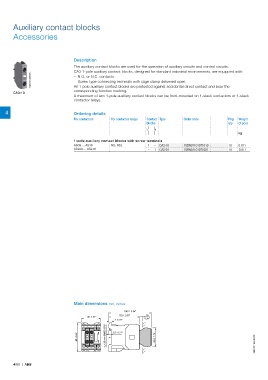

Auxiliary contact blocks

Accessories

Description
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits.
CA3 1-pole auxiliary contact blocks, designed for standard industrial environments, are equipped with:
1SBC101036F0014 – N.O. or N.C. contacts.
– Screw-type connecting terminals with cage clamp delivered open.
All 1-pole auxiliary contact blocks are protected against accidental direct contact and bear the
corresponding function marking.
CA3-10
A maximum of two 1-pole auxiliary contact blocks can be front-mounted on 1-stack contactors or 1-stack
contactor relays.

4 Ordering details
For contactors For contactor relays Contact Type Order code Pkg Weight
blocks qty (1 pce)

kg
1-pole auxiliary contact blocks with screw terminals
AS09 ... AS16 NS, NSL 1 – CA3-10 1SBN011010T1010 10 0.011
ASL09 ... ASL16 – 1 CA3-01 1SBN011010T1001 10 0.011

Main dimensions mm, inches
100.2 3.94"
72.5 2.85" 10
45 1.77" 0.39"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.2 1.74"
1SBC101492S0201
