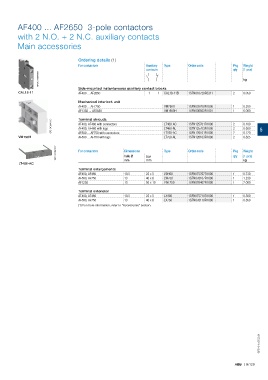

AF400 ... AF2650 3-pole contactors

with 2 N.O. + 2 N.C. auxiliary contacts
Main accessories

Ordering details (1)
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
1SFC101082V0001 kg

Side-mounted instantaneous auxiliary contact blocks
CAL18-11 AF400 ... AF2650 1 1 CAL18-11B 1SFN010720R3311 2 0.050

Mechanical interlock unit
AF400 ... AF1250 VM750H 1SFN035700R1000 1 0.200
AF1350 ... AF2650 VM1650H 1SFN036503R1001 1 6.000

1SFC101084V0001 Terminal shrouds LT460-AC 1SFN125701R1000 2 2 0.100 5
AF400, AF460 with connectors
0.800
1SFN125703R1000
LT460-AL
AF400, AF460 with lugs
VM750H AF580 ... AF750 with connectors LT750-AC 1SFN126101R1000 2 2 0.120
1SFN126103R1000
AF580 ... AF750 with lugs
LT750-AL
0.825
1SFC101089V0001 For contactors Dimensions bar Type Order code Pkg Weight
hole Ø
(1 pce)
qty
LT460-AC mm mm kg
Terminal enlargements
AF400, AF460 10.5 25 x 5 LW460 1SFN075707R1000 1 0.730
AF580, AF750 13 40 x 6 LW750 1SFN076107R1000 1 1.230
AF1250 13 50 x 10 LW1250 1SFN076407R1000 1 2.000
Terminal extension
AF400, AF460 10.5 25 x 5 LX460 1SFN075710R1000 1 0.500
AF580, AF750 13 40 x 6 LX750 1SFN076110R1000 1 0.850
(1) For more information, refer to "Accessories" section.

1SFC101140C0201
