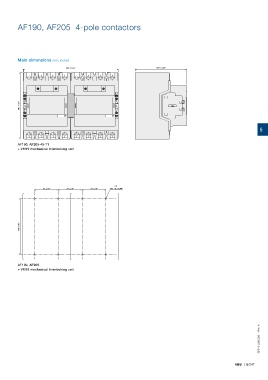

AF190, AF205 4-pole contactors
Main dimensions mm, inches
280 11.02" 152.5 6.00"
196 7.72"
5
AF190, AF205-40-11
+ VM19 mechanical interlocking unit
4 X
70 2.76" 70 2.76" 70 2.76" M5 10-24 UNC
165 6.50"
AF190, AF205
+ VM19 mechanical interlocking unit
1SFC101229C0201 - Rev. A 1SFC101229C0201
