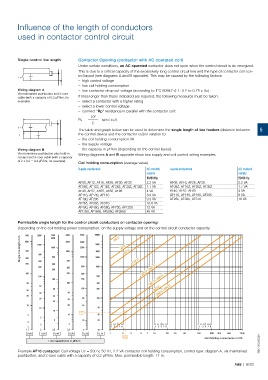

Influence of the length of conductors

         used in contactor control circuit





         Single control line length  Contactor Opening (contactor with AC operated coil)
                                    Under certain conditions, an AC operated contactor does not open when the control circuit is de-energized.
                                    This is due to a critical capacity of the excessively long control circuit line and the type of contactor coil con-
                                    trol layout (see diagrams A and B opposite). This may be caused by the following factors:
                             A841D     – high control voltage
                                       – low coil holding consumption
         Wiring diagram A              – low contactor drop-out voltage (according to IEC 60947-4-1: 0.2 to 0.75 x Uc).
         Via maintained pushbutton and 2-core
         cable (with a capacity of 0.2 μF/km, for   If lines longer than those indicated are required, the following measures must be taken:
         example).                     – select a contactor with a higher rating
                                       – select a lower control voltage
                                       – connect "Rp" resistance in parallel with the contactor coil:
                                         10 3
                                    R P  =       (with C in µF)
                                          C
                                    The table and graph below can be used to determine the single length of line feeders (distance between   5
                                    the control device and the contactor coil) in relation to:
                                       – the coil holding consumption VA
                             A840D     – the supply voltage
         Wiring diagram B              – the capacity in μF/km (depending on the control layout).
         Via momentary pushbutton plus hold-in   Wiring diagrams A and B opposite show two supply and coil control wiring examples.
         contact and 3-core cable (with a capacity
         of 2 x 0.2 = 0.4 μF/km, for example).
                                    Coil holding consumption (average value)
                                    3-pole contactors             AC control   4-pole contactors           AC control
                                                                  supply                                   supply
                                                                  50/60 Hz                                 50/60 Hz
                                    AF09, AF12, AF16, AF26, AF30, AF38  2.2 VA  AF09, AF16, AF26, AF38     2.2 VA
                                    AF09Z, AF12Z, AF16Z, AF26Z, AF30Z, AF38Z  1.7 VA  AF09Z, AF16Z, AF26Z, AF38Z  1.7 VA
                                    AF40, AF52, AF65, AF80, AF96  4 VA       AF40, AF52, AF80              4 VA
                                    AF116, AF140, AF146           8.9 VA     AF116, AF140, AF190, AF205    8 VA
                                    AF190, AF205                  9.3 VA     AF265, AF305, AF370           16 VA
                                    AF265, AF305, AF370           16.6 VA
                                    AF400, AF460, AF580, AF750, AF1250  12 VA
                                    AF1350, AF1650, AF2050, AF2650   48 VA

         Permissible single length for the control circuit conductors on contactor opening:
         Depending on the coil holding power consumption, on the supply voltage and on the control circuit conductor capacity.

            1700  2000  2500  3300   5000  10000    24 V
          Single line length in m  500  1000  1000  1000  2000  5000  48 V 60 V
                        2000
            1000
                              2000
                                     3000
                                            3000
                  500
            300
            200   300   500    500   1000   2000            110 V
                        300
                  200          300   500    1000
                        200                                     220 V - 230 V
            100                200   300
                  100                       500
                        100          200                            380 V - 400 V
             50                100          300
                   50
                         50          100    200                      500 V
             30                                                        660 V - 690 V
                   30          50
             20          30
                   20          30     50    100
                         20
             10                20     30
                   10                       50
                         10
             5                 10    17     30
                   5
                         5            10    20
             3
                   3            5
             2                                    13 57 9             13 57 9             13 57 9
             1.7   2    2.5    3.3    5     10
             0.60  0.50  0.40   0.30  0.20   0.10  1   2   3   5  7  10    20  30  50   100   200  300  500  1000
                                                        2.2                                 Coil holding consumption in VA
                       Line capacitance in µF/km                                                                    1SBC100063S0201 1SBC100063S0201
         Example AF16 contactor: Coil voltage Uc = 500 V, 50 Hz, 2.2 VA contactor coil holding consumption, control type: diagram A, via maintained
         pushbutton, and 2-core cable with a capacity of 0.2 μF/km. Max. permissible length: 17 m.
