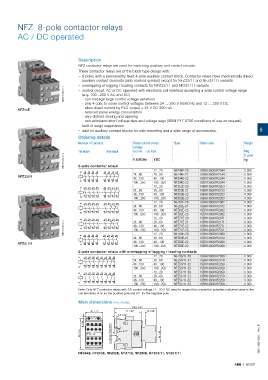

NFZ 8-pole contactor relays

AC / DC operated

Description
NFZ contactor relays are used for switching auxiliary and control circuits.
These contactor relays are of the block type design with:
– 8 poles with a permanently fixed 4-pole auxiliary contact block. Contactor relays have mechanically linked
auxiliary contact elements (side-marked symbol) except for NFZ33/11 and NFZ51/11 variants
– overlapping of lagging / leading contacts for NFZ33/11 and NFZ51/11 variants
1SBC101029V0014 – control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC)
- can manage large control voltage variations
- only 4 coils to cover control voltages between 24 ... 250 V 50/60 Hz and 12 ... 250 V DC
- allow direct control by PLC-output ≥ 24 V DC 500 mA
NFZ44E
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories. 5
Ordering details
Number of contacts Rated control circuit Type Order code Weight
voltage
1st stack 2nd stack Uc min. ... Uc max. Pkg
1SBC101042V0014 8-pole contactor relays V 50/60 Hz V DC kg
(1 pce)

A1 13 23 33 43 51 61 71 81 - 12...20 NFZ44E-20 1SBH136001R2044 0.360
NO NO NO NO NC NC NC NC 24...60 20...60 NFZ44E-21 1SBH136001R2144 0.360
NFZ33/11 48...130 48...130 NFZ44E-22 1SBH136001R2244 0.360
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82 100...250 100...250 NFZ44E-23 1SBH136001R2344 0.360
- 12...20 NFZ53E-20 1SBH136001R2053 0.360
A1 13 23 33 43 53 61 71 81
24...60 20...60 NFZ53E-21 1SBH136001R2153 0.360
NO NO NO NO NO NC NC NC
48...130 48...130 NFZ53E-22 1SBH136001R2253 0.360
NO NO NO NO NO NC NC NC
A2 14 24 34 44 54 62 72 82 100...250 100...250 NFZ53E-23 1SBH136001R2353 0.360
- 12...20 NFZ62E-20 1SBH136001R2062 0.360
A1 13 23 33 43 53 61 71 83
NO NO NO NO NO NC NC NO
24...60 20...60 NFZ62E-21 1SBH136001R2162 0.360
48...130 48...130 NFZ62E-22 1SBH136001R2262 0.360
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84
100...250 100...250 NFZ62E-23 1SBH136001R2362 0.360
- 12...20 NFZ71E-20 1SBH136001R2071 0.360
A1 NO 13 NO 23 NO 33 NO 43 NO 53 NC 61 NO 73 NO 83 24...60 20...60 NFZ71E-21 1SBH136001R2171 0.360
1SBC101043V0014 A2 NO 14 NO 24 NO 34 NO 44 NO 54 NC 62 NO 74 NO 84 48...130 48...130 NFZ71E-22 1SBH136001R2271 0.360
NFZ71E-23
100...250
0.360
1SBH136001R2371
100...250
A1
NO 13 NO 23 NO 33 NO 43 NO 53 NO 63 NO 73 NO 83 - 12...20 NFZ80E-20 1SBH136001R2080 0.360
24...60 20...60 NFZ80E-21 1SBH136001R2180 0.360
48...130 48...130 NFZ80E-22 1SBH136001R2280 0.360
NFZ51/11 A2 NO NO NO NO 44 NO NO NO NO
74
84
100...250 100...250 NFZ80E-23 1SBH136001R2380 0.360
64
24
14
54
34
8-pole contactor relays with overlapping of lagging / leading contacts
- 12...20 NFZ33/11-20 1SBH136001R2039 0.360
A1 13 23 33 41 51 61 75 87
NO NO NO NC NC NC NC NO
24...60 20...60 NFZ33/11-21 1SBH136001R2139 0.360
48...130 48...130 NFZ33/11-22 1SBH136001R2239 0.360
NO NO NO NC NC NC NC NO
100...250 100...250 NFZ33/11-23 1SBH136001R2339 0.360
A2 14 24 34 42 52 62 76 88
- 12...20 NFZ51/11-20 1SBH136001R2059 0.360
A1 13 23 33 43 53 61 75 87
NO NO NO NO NO NC NC NO
24...60 20...60 NFZ51/11-21 1SBH136001R2159 0.360
48...130 48...130 NFZ51/11-22 1SBH136001R2259 0.360
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 76 88 100...250 100...250 NFZ51/11-23 1SBH136001R2359 0.360
Note: Only NFZ contactor relays with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole
Main dimensions mm, inches
110.5 4.35"
45 1.77" 71 2.80" 10 0.39" 35 1.38"
2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 1SBC101561S0201 - Rev. B
NFZ44E, NFZ53E, NFZ62E, NFZ71E, NFZ80E, NFZ33/11, NFZ51/11 5 0.20"
