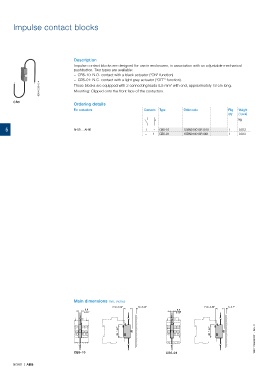

Impulse contact blocks

Description
Impulse contact blocks are designed for use in enclosures, in association with an adjustable mechanical
pushbutton. Two types are available:
– CB5-10: N.O. contact with a black actuator ("ON" function)
– CB5-01: N.C. contact with a light grey actuator ("OFF" function).
1SBC100039V0014 These blocks are equipped with 2 connecting leads 0.5 mm with end, approximately 18 cm long.
2
Mounting: Clipped onto the front face of the contactors.

CB5
Ordering details
For contactors Contacts Type Order code Pkg Weight
qty (1 pce)
kg

5 AF09 ... AF96 1 – CB5-10 1SBN010013R1010 1 0.012
– 1 CB5-01 1SBN010013R1001 1 0.012

Main dimensions mm, inches
22.9 0.90" 10 0.39" 21.6 0.85" 5 0.2"
9.8 9.8
0.39" 0.39"

1SBC101655S0201 - Rev. C
36 1.42" 36 1.42"

CB5-10 CB5-01
