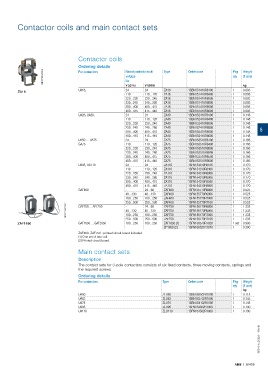

Contactor coils and main contact sets

Contactor coils

Ordering details Rated control circuit Type Order code Pkg Weight
1SBC573802F0302 For contactors voltage qty (1 pce)

Uc
24
UA16, V 50 Hz V 60 Hz ZA16 1SBN151410R8106 1 kg
0.093
24
ZA16
110 110…120 ZA16 1SBN151410R8406 1 0.093
220…230 230…240 ZA16 1SBN151410R8006 1 0.093
230...240 240…260 ZA16 1SBN151410R8806 1 0.093
380…400 400…415 ZA16 1SBN151410R8506 1 0.093
400…415 415…440 ZA16 1SBN151410R8606 1 0.093
UA26, UA30, 24 24 ZA40 1SBN152410R8106 1 0.148
110 110…120 ZA40 1SBN152410R8406 1 0.148
220…230 230…240 ZA40 1SBN152410R8006 1 0.148
230...240 240…260 ZA40 1SBN152410R8806 1 0.148 5
380…400 400…415 ZA40 1SBN152410R8506 1 0.148
400…415 415…440 ZA40 1SBN152410R8606 1 0.148
UA50 … UA75 24 24 ZA75 1SBN153510R8106 1 0.166
GA75 110 110…120 ZA75 1SBN153510R8406 1 0.166
220…230 230…240 ZA75 1SBN153510R8006 1 0.166
230...240 240…260 ZA75 1SBN153510R8806 1 0.166
380…400 400…415 ZA75 1SBN153510R8506 1 0.166
400…415 415…440 ZA75 1SBN153510R8606 1 0.166
UA95, UA110 24 24 ZA110 1SFN154310R8106 1 0.170
110 110…120 ZA110 1SFN154310R8406 1 0.170
220…230 230…240 ZA110 1SFN154310R8006 1 0.170
230...240 240…260 ZA110 1SFN154310R8806 1 0.170
380…400 400…415 ZA110 1SFN154310R8506 1 0.170
400…415 415…440 ZA110 1SFN154310R8606 1 0.170
GAF460 - 24…60 ZAF460 1SFN155770R6806 1 0.525
48…130 48…130 ZAF460 1SFN155770R6906 1 0.525
100…250 100…250 ZAF460 1SFN155770R7006 1 0.525
250…500 250…500 ZAF460 1SFN155770R7106 1 0.525
1SFC101007F0201 GAF750 ... AF1250 - 48…130 24…60 ZAF750 1SFN156170R6806 1 1 1 1.335
ZAF750
48…130
1.335
1SFN156170R6906
1.335
100…250
ZAF750
100…250
1SFN156170R7006
250…500 250…500 ZAF750 1SFN156170R7106 1 1.335
ZAF1650 GAF1650 ... GAF2050 100…250 100…250 ZAF1650 (1) 1SFN156570R7026 1 set 0.900
ZP1650 (2) 1SFN166521R1070 1 0.300
ZAF460, ZAF750 : printed circuit board included.
(1) One set of two coil.
(2) Printed circuit board.
Main contact sets
Description
The contact sets for 3-pole contactors consists of six fixed contacts, three moving contacts, springs and
the required screws.
Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
UA50 ZLU50 1SBN163502R1000 1 0.115
UA63 ZLU63 1SBN163702R1000 1 0.145
UA75 ZLU75 1SBN164102R1000 1 0.145
UA95 ZLU95 1SFN164302R1000 1 0.190
UA110 ZLU110 1SFN164502R1000 1 0.190
