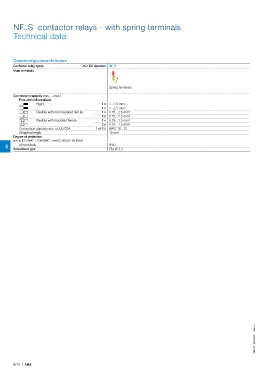

NF..S contactor relays - with spring terminals

Technical data

Connecting characteristics
Contactor relay types AC / DC operated NF..S
Main terminals

Spring terminals
Connection capacity (min. ... max.)
Pole and coil terminals
Rigid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm²
2 x 0.75...1.5 mm²
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18...12
Stripping length 10 mm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529
All terminals
6 Screwdriver type IP20
Flat Ø 3.5

1SBC101695S0201 - Rev. A

6/76 | ABB
