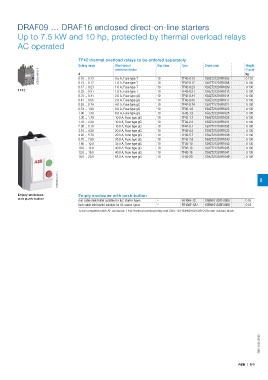

DRAF09 … DRAF16 enclosed direct-on-line starters

Up to 7.5 kW and 10 hp, protected by thermal overload relays
AC operated

TF42 thermal overload relays to be ordered separately
Setting range Short-circuit Trip class Type Order code Weight
(1 pce)
protective device
2CDC231006V0013 A 0.10 ... 0.13 0.5 A, Fuse type T 10 TF42-0.13 1SAZ721201R1005 kg
0.130
0.13 ... 0.17
10
TF42-0.23
1SAZ721201R1009
1.0 A, Fuse type T
0.17 ... 0.23 1.0 A, Fuse type T 10 TF42-0.17 1SAZ721201R1008 0.130
0.130
TF42 0.23 ... 0.31 1.0 A, Fuse type T 10 TF42-0.31 1SAZ721201R1013 0.130
0.31 ... 0.41 2.0 A, Fuse type gG 10 TF42-0.41 1SAZ721201R1014 0.130
0.41 ... 0.55 2.0 A, Fuse type gG 10 TF42-0.55 1SAZ721201R1017 0.130
0.55 ... 0.74 4.0 A, Fuse type gG 10 TF42-0.74 1SAZ721201R1021 0.130
0.74 ... 1.00 6.0 A, Fuse type gG 10 TF42-1.0 1SAZ721201R1023 0.130
1.00 ... 1.30 6.0 A, Fuse type gG 10 TF42-1.3 1SAZ721201R1025 0.130
1.30 ... 1.70 10.0 A, Fuse type gG 10 TF42-1.7 1SAZ721201R1028 0.130
1.70 ... 2.30 10.0 A, Fuse type gG 10 TF42-2.3 1SAZ721201R1031 0.130
2.30 ... 3.10 10.0 A, Fuse type gG 10 TF42-3.1 1SAZ721201R1033 0.130
3.10 ... 4.20 20.0 A, Fuse type gG 10 TF42-4.2 1SAZ721201R1035 0.130
4.20 ... 5.70 20.0 A, Fuse type gG 10 TF42-5.7 1SAZ721201R1038 0.130
5.70 ... 7.60 35.0 A, Fuse type gG 10 TF42-7.6 1SAZ721201R1040 0.130
7.60 ... 10.0 35.0 A, Fuse type gG 10 TF42-10 1SAZ721201R1043 0.130
10.0 ... 13.0 40.0 A, Fuse type gG 10 TF42-13 1SAZ721201R1045 0.130
13.0 ... 16.0 40.0 A, Fuse type gG 10 TF42-16 1SAZ721201R1047 0.130
16.0 ... 20.0 63.0 A, Fuse type gG 10 TF42-20 1SAZ721201R1049 0.145

1SBC133004V0014 8

Empty enclosure Empty enclosure with push-button
with push-button mm cable inlet/outlet suitable for IEC starter types – FR16AF-12 1SBN101337R1000 0.53
Inch cable inlet/outlet suitable for UL starter types – FR16AF-12U 1SBN101338R1000 0.53
To be completed with AF contactor, TF42 thermal overload relay and CB5-10 (1SBN010013R1010) start contact block.
