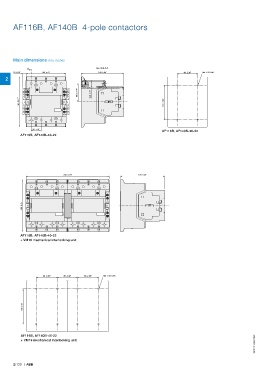

AF116B, AF140B 4-pole contactors
Main dimensions mm, inches
A SECTION A-A
10 0.39" 120 4.72" 128 5.04" 60 2.36" M4 8-32 UNC
2
55.5 2.18" 19.5 0.77"
150 5.91" 100 3.94"
30 1.18"
AF116B, AF140B-40-22
AF116B, AF140B-40-22
240 9.45" 128 5.04"
150 5.91"
AF116B, AF140B-40-22
+ VM19 mechanical interlocking unit
60 2.36" 60 2.36" 60 2.36" M4 8-32 UNC
100 3.94"
1SFC101295C0201
AF116B, AF140B-40-22
+ VM19 mechanical interlocking unit
