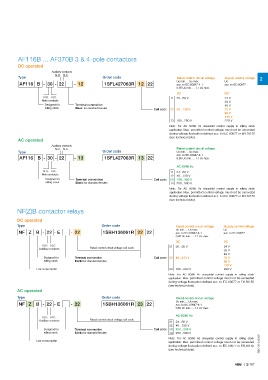

Page 179 - contactors_motor_protection_for_rolling_stock_application

AF116B ... AF370B 3 & 4-pole contactors

DC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage Supply control voltage 2
Uc min. ... Uc max. Uc
AF116 B - 30 - 22 - 12 1SFL427063R 12 22 acc. to IEC 60947-4-1 acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
DC DC
N.O. N.C. 11 20...60 V 24 V
Main contacts 33 V
Designed for Terminal connection 48 V
rolling stock Blank: for standard ferrules Coil code 12 48...130 V 72 V
96 V
110 V
13 100...250 V 220 V
Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
application. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined acc. to IEC 60077 or EN 50155
(see technical data).
AC operated
Auxiliary contacts
N.O. N.C. Rated control circuit voltage
Type Order code Uc min. ... Uc max.
acc. to IEC 60947-4-1
AF116 B - 30 - 22 - 13 1SFL427063R 13 22 0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
N.O. N.C. 11 24...60 V
Main contacts
12 48...130 V
Designed for Terminal connection Coil code 13 100...250 V
rolling stock Blank: for standard ferrules 14 250...500 V
Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
application. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined acc. to IEC 60077 or EN 50155
(see technical data).
NF(Z)B contactor relays

DC operated
Type Order code Rated control circuit voltage Supply control voltage
Uc min. ... Uc max. Uc
NF Z B - 22 - E - 22 1SBH136061R 22 22 acc. to IEC 60947-4-1 acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
DC DC
N.O. N.C. 21 20...60 V 24 V
Auxiliary contacts Rated control circuit voltage coil code
33 V
48 V
Designed for Terminal connection Coil code 22 48...130 V 72 V
rolling stock Blank: for standard ferrules 96 V
110 V
Low consumption 23 100...250 V 220 V
Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
application. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined acc. to IEC 60077 or EN 50155
(see technical data).
AC operated
Type Order code Rated control circuit voltage
Uc min. ... Uc max.
NF Z B - 22 - E - 22 1SBH136061R 23 22 acc. to IEC 60947-4-1
0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
N.O. N.C.
Auxiliary contacts Rated control circuit voltage coil code 21 24...60 V
22 48...130 V
Designed for Terminal connection Coil code 23 100...250 V
rolling stock Blank: for standard ferrules 14 250...500 V
Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
Low consumption application. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined acc. to IEC 60077 or EN 50155 1SBC100154S0201 1SBC100154S0201
(see technical data).
