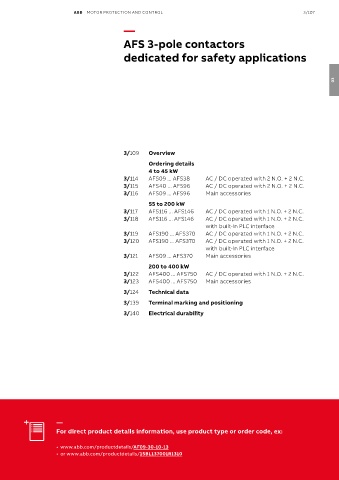

Page 181 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/107

—

AFS 3-pole contactors

dedicated for safety applications

03

3/109 Overview
Ordering details
4 to 45 kW
3/114 AFS09 ... AFS38 AC / DC operated with 2 N.O. + 2 N.C.
3/115 AFS40 ... AFS96 AC / DC operated with 2 N.O. + 2 N.C.
3/116 AFS09 ... AFS96 Main accessories
55 to 200 kW
3/117 AFS116 ... AFS146 AC / DC operated with 1 N.O. + 2 N.C.
3/118 AFS116 ... AFS146 AC / DC operated with 1 N.O. + 2 N.C.
with built-in PLC interface
3/119 AFS190 ... AFS370 AC / DC operated with 1 N.O. + 2 N.C.
3/120 AFS190 ... AFS370 AC / DC operated with 1 N.O. + 2 N.C.
with built-in PLC interface
3/121 AFS09 ... AFS370 Main accessories

200 to 400 kW
3/122 AFS400 ... AFS750 AC / DC operated with 1 N.O. + 2 N.C.
3/123 AFS400 ... AFS750 Main accessories
3/124 Technical data

3/139 Terminal marking and positioning
3/140 Electrical durability

—
For direct product details information, use product type or order code, ex:

• www.abb.com/productdetails/AF09-30-10-13
• or www.abb.com/productdetails/1SBL137001R1310
