Page 207 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/133

—

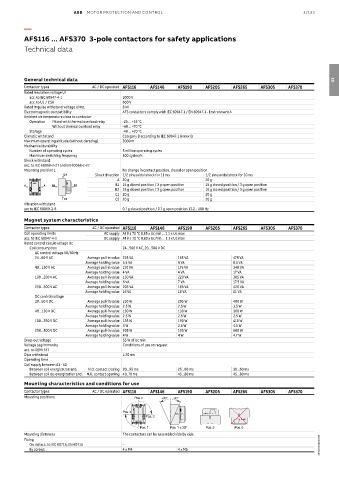

AFS116 ... AFS370 3-pole contactors for safety applications
Technical data

General technical data 03
Contactor types AC / DC operated AFS116 AFS146 AFS190 AFS205 AFS265 AFS305 AFS370
Rated insulation voltage Ui
acc. to IEC 60947-4-1 1000 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage Uimp. 8 kV
Electromagnetic compatibility AFS contactors comply with IEC 60947-1 / EN 60947-1 - Environment A
Ambient air temperature close to contactor
Operation Fitted with thermal overload relay -25 ... +55 °C
Without thermal overload relay -40 ... +70 °C
Storage -40 ... +70 °C
Climatic withstand Category B according to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 3000 m
Mechanical durability
Number of operating cycles 5 million operating cycles
Maximum switching frequency 300 cycles/h
Shock withstand
acc. to IEC 60068-2-27 and EN 60068-2-27
Mounting position 1 No change in contact position, closed or open position
C1 Shock direction 1/2 sinusoidal shock for 11 ms 1/2 sinusoidal shock for 30 ms
A 20 g 20 g
ABB
A A B1 B2 B1 15 g closed position / 3 g open position 15 g closed position / 3 g open position
B2 15 g closed position / 3 g open position 15 g closed position / 3 g open position
C1 20 g 20 g
C2 C2 20 g 20 g
Vibration withstand
acc to IEC 60068-2-6 0.7 g closed position / 0.7 g open position 13.2…100 Hz
Magnet system characteristics
Contactor types AC / DC operated AFS116 AFS146 AFS190 AFS205 AFS265 AFS305 AFS370
Coil operating limits AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
acc. to IEC 60947-4-1 DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
Rated control circuit voltage Uc
Coil consumption 24...500 V AC, 20...500 V DC
AC control voltage 50/60 Hz
24...60 V AC Average pull-in value 225 VA 165 VA 475 VA
Average holding value 5.5 VA 6 VA 8.5 VA
48...130 V AC Average pull-in value 170 VA 175 VA 340 VA
Average holding value 4 VA 4 VA 17 VA
100...250 V AC Average pull-in value 130 VA 220 VA 385 VA
Average holding value 6 VA 7 VA 17.5 VA
250...500 V AC Average pull-in value 205 VA 185 VA 420 VA
Average holding value 16 VA 16 VA 21 VA
DC control voltage
20...60 V DC Average pull-in value 210 W 205 W 400 W
Average holding value 2.5 W 2.5 W 3.5 W
48...130 V DC Average pull-in value 130 W 130 W 360 W
Average holding value 2.5 W 2.5 W 2.5 W
100...250 V DC Average pull-in value 135 W 190 W 410 W
Average holding value 3 W 2.5 W 4.5 W
250...500 V DC Average pull-in value 205 W 190 W 600 W
Average holding value 4 W 4 W 4.7 W
Drop-out voltage 55 % of Uc min
Voltage sag immunity Conditions of use on request
acc. to SEMI F47
Dips withstand ≥ 20 ms
Operating time
Coil supply between A1 - A2
Between coil energization and: N.O. contact closing 20...55 ms 25...60 ms 30...60 ms
Between coil de-energization and: N.O. contact opening 40..70 ms 45...80 ms 45...80 ms
Mounting characteristics and conditions for use
Contactor types AC / DC operated AFS116 AFS146 AFS190 AFS205 AFS265 AFS305 AFS370
Mounting positions Pos. 2 +30° -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Mounting distances The contactors can be assembled side by side
Fixing
On rail acc. to IEC 60715, EN 60715 – 1SBC100482S0201
By screws 4 x M4 4 x M5
