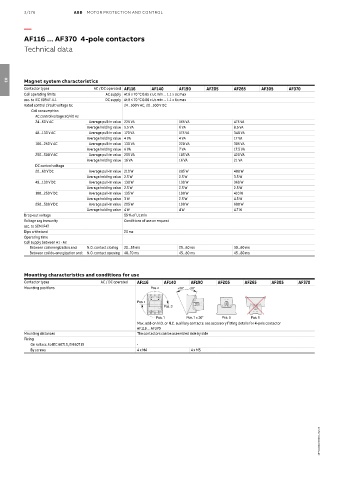

3/176            ABB  MOTOR PROTECTION AND CONTROL

          —

          AF116 ... AF370  4-pole contactors
          Technical data





          Magnet system characteristics
   03
          Contactor types         AC / DC operated AF116  AF140  AF190    AF205    AF265     AF305    AF370
          Coil operating limits       AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
          acc. to IEC 60947-4-1       DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
          Rated control circuit voltage Uc   24...500 V AC, 20...500 V DC
            Coil consumption
             AC control voltage 50/60 Hz
             24...60 V AC       Average pull-in value 225 VA    165 VA             475 VA
                                Average holding value 5.5 VA    6 VA               8.5 VA
             48...130 V AC      Average pull-in value 170 VA    175 VA             340 VA
                                Average holding value 4 VA      4 VA               17 VA
             100...250 V AC     Average pull-in value 130 VA    220 VA             385 VA
                                Average holding value 6 VA      7 VA               17.5 VA
             250...500 V AC     Average pull-in value 205 VA    185 VA             420 VA
                                Average holding value 16 VA     16 VA              21 VA
             DC control voltage
             20...60 V DC       Average pull-in value 210 W     205 W              400 W
                                Average holding value 2.5 W     2.5 W              3.5 W
             48...130 V DC      Average pull-in value 130 W     130 W              360 W
                                Average holding value 2.5 W     2.5 W              2.5 W
             100...250 V DC     Average pull-in value 135 W     190 W              410 W
                                Average holding value 3 W       2.5 W              4.5 W
             250...500 V DC     Average pull-in value 205 W     190 W              600 W
                                Average holding value 4 W       4 W                4.7 W
         Drop-out voltage                    55 % of Uc min
         Voltage sag immunity                Conditions of use on request
         acc. to SEMI F47
         Dips withstand                      20 ms
         Operating time
          Coil supply between A1 - A2
           Between coil energization and:  N.O. contact closing  20...55 ms  25...60 ms  30...60 ms
           Between coil de-energization and:  N.O. contact opening  40..70 ms  45...80 ms  45...80 ms



          Mounting characteristics and conditions for use
          Contactor types           AC / DC operated  AF116  AF140  AF190     AF205    AF265    AF305     AF370
          Mounting positions                          Pos. 2   +30°  -30°


                                                 Pos. 4
                                                           Pos. 3
                                                        Pos. 1    Pos. 1 ± 30°  Pos. 5   Pos. 6
                                                 Max. add-on N.O. or N.C. auxiliary contacts: see accessory fitting details for 4-pole contactor
                                                 AF116 ... AF370
          Mounting distances                     The contactors can be assembled side by side
          Fixing
            On rail acc. to IEC 60715, EN 60715  -
            By screws                            4 x M4             4 x M5
















                                                                                                                 1SFC101210C0201 - Rev. B
