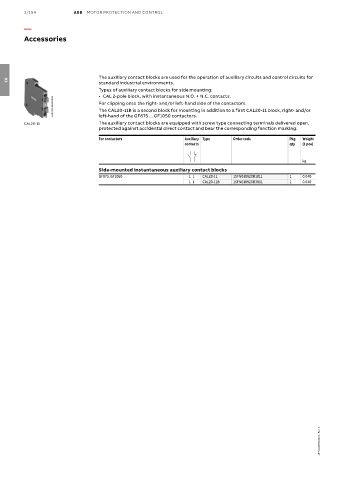

Page 268 - Motor protection and control Manual motor starters, contactors and overload relays

3/194 ABB MOTOR PROTECTION AND CONTROL

—

Accessories

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for
standard industrial environments.
03
Types of auxiliary contact blocks for side mounting:
• CAL 2-pole block, with instantaneous N.O. + N.C. contacts.
1SFC101390V0001 For clipping onto the right- and/or left-hand side of the contactors.
The CAL20-11B is a second block for mounting in addition to a first CAL20-11 block, right- and/or
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
CAL20-11 left-hand of the GF875 ... GF1050 contactors.
protected against accidental direct contact and bear the corresponding function marking.
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)

kg
Side-mounted instantaneous auxiliary contact blocks
GF875, GF1050 1 1 CAL20-11 1SFN010920R1011 1 0.040
1 1 CAL20-11B 1SFN010920R3011 1 0.040

1SFC101326C0201 - Rev. A
